Specification:
Manufacturer: LESU
Item Condition: New, Assembled and Painted.
Scale: 1/14
Size: 478*165*221
Net Weight: About 4KG
ID: LS-RD-A0016-RTR-PAINTING-RGYS

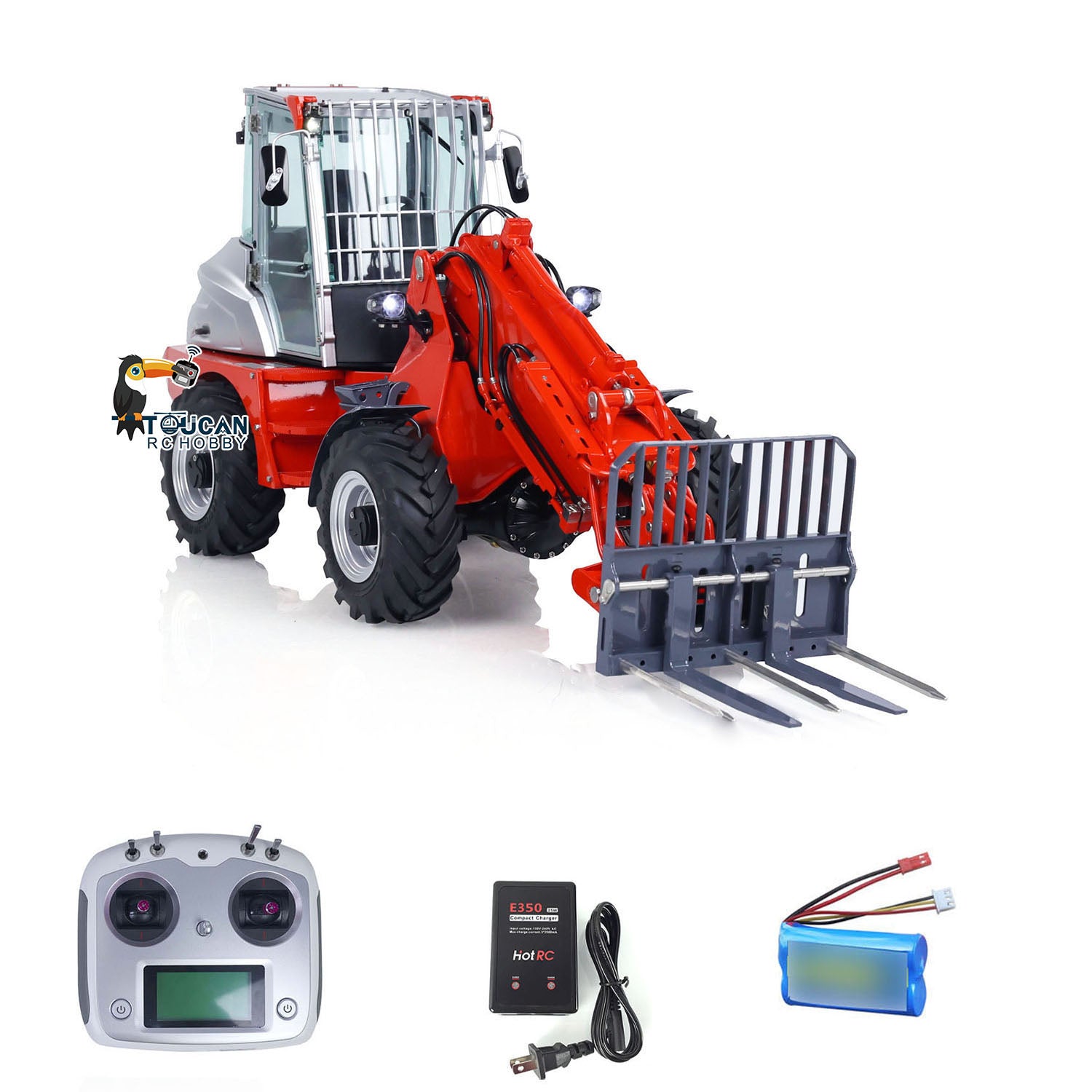

The Package Includes:

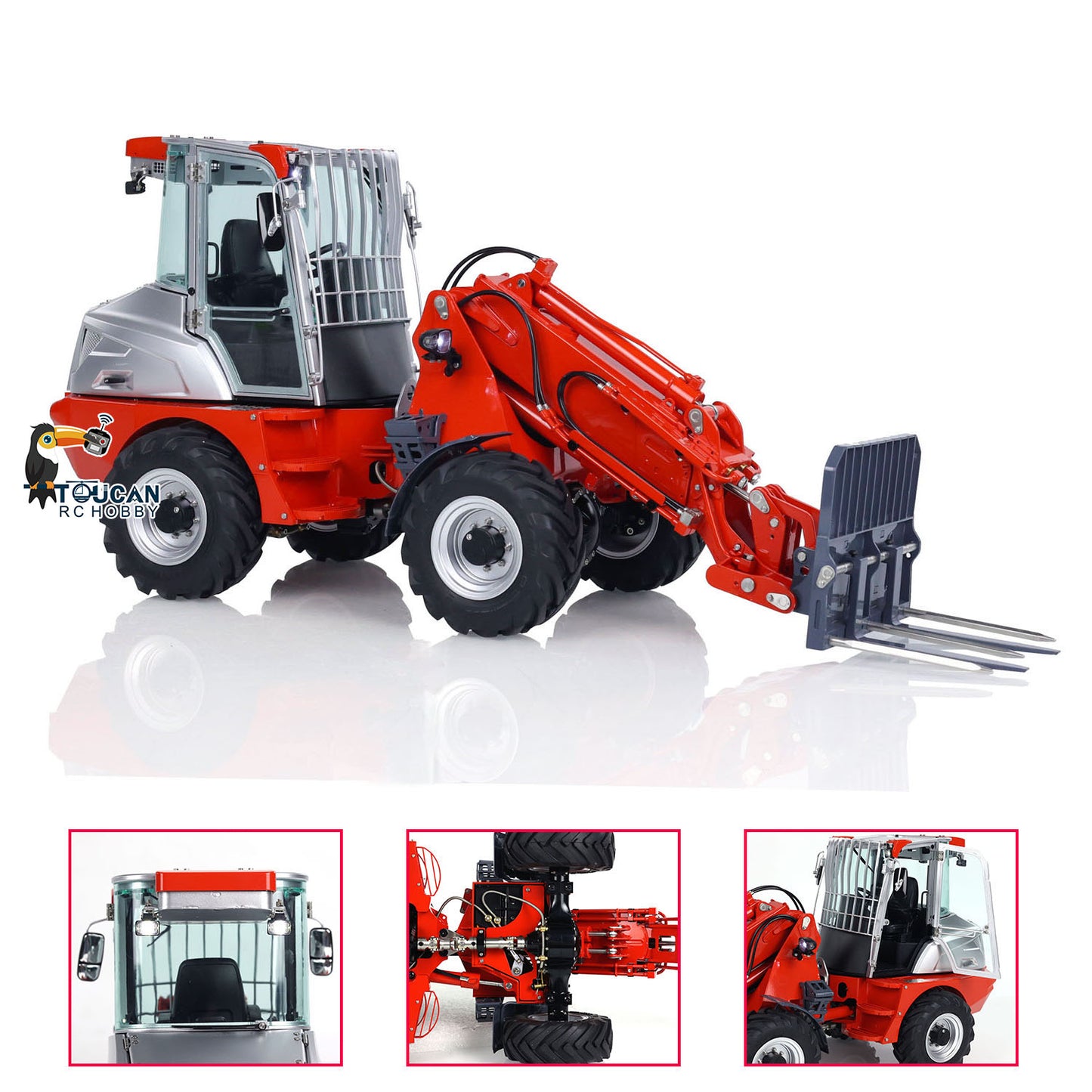

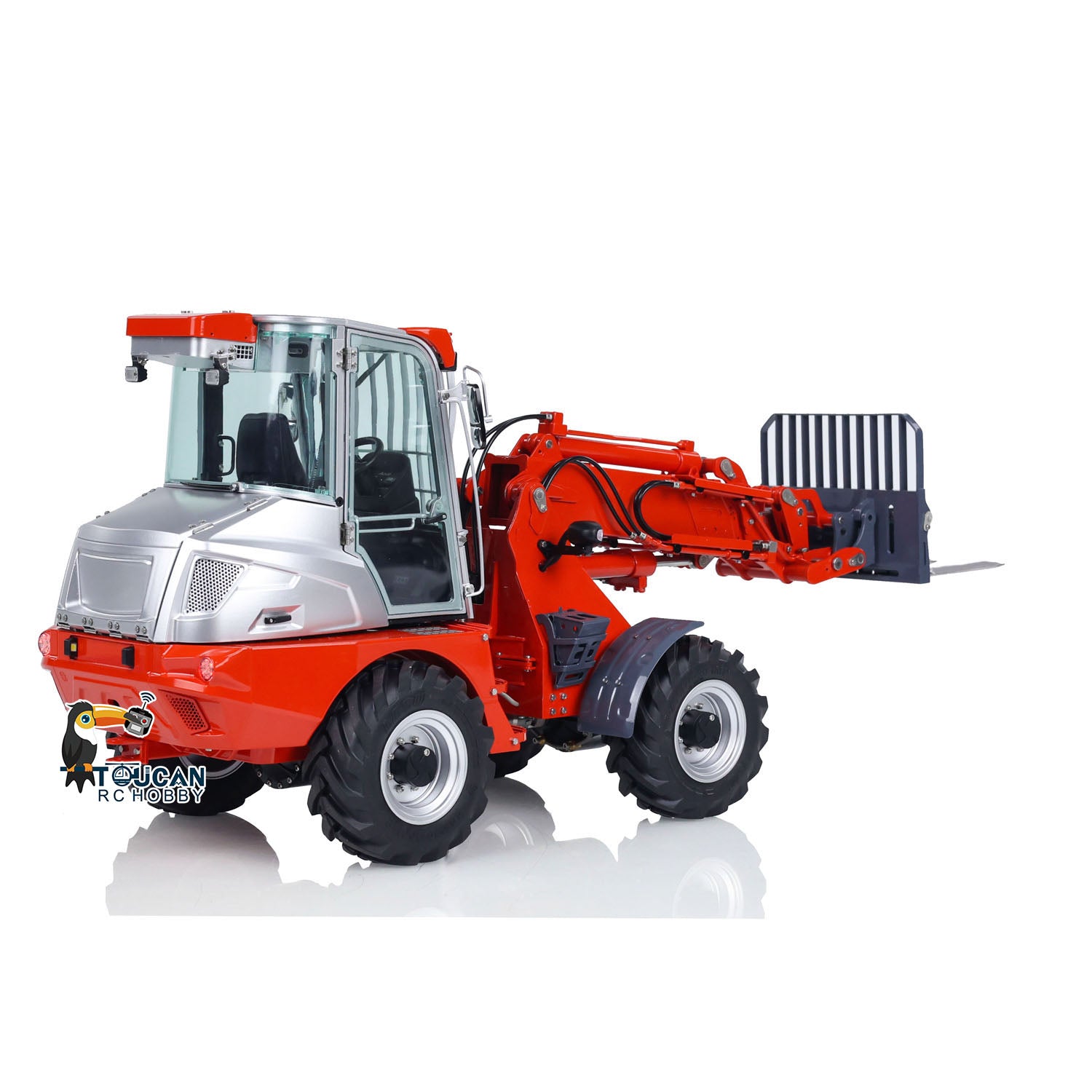

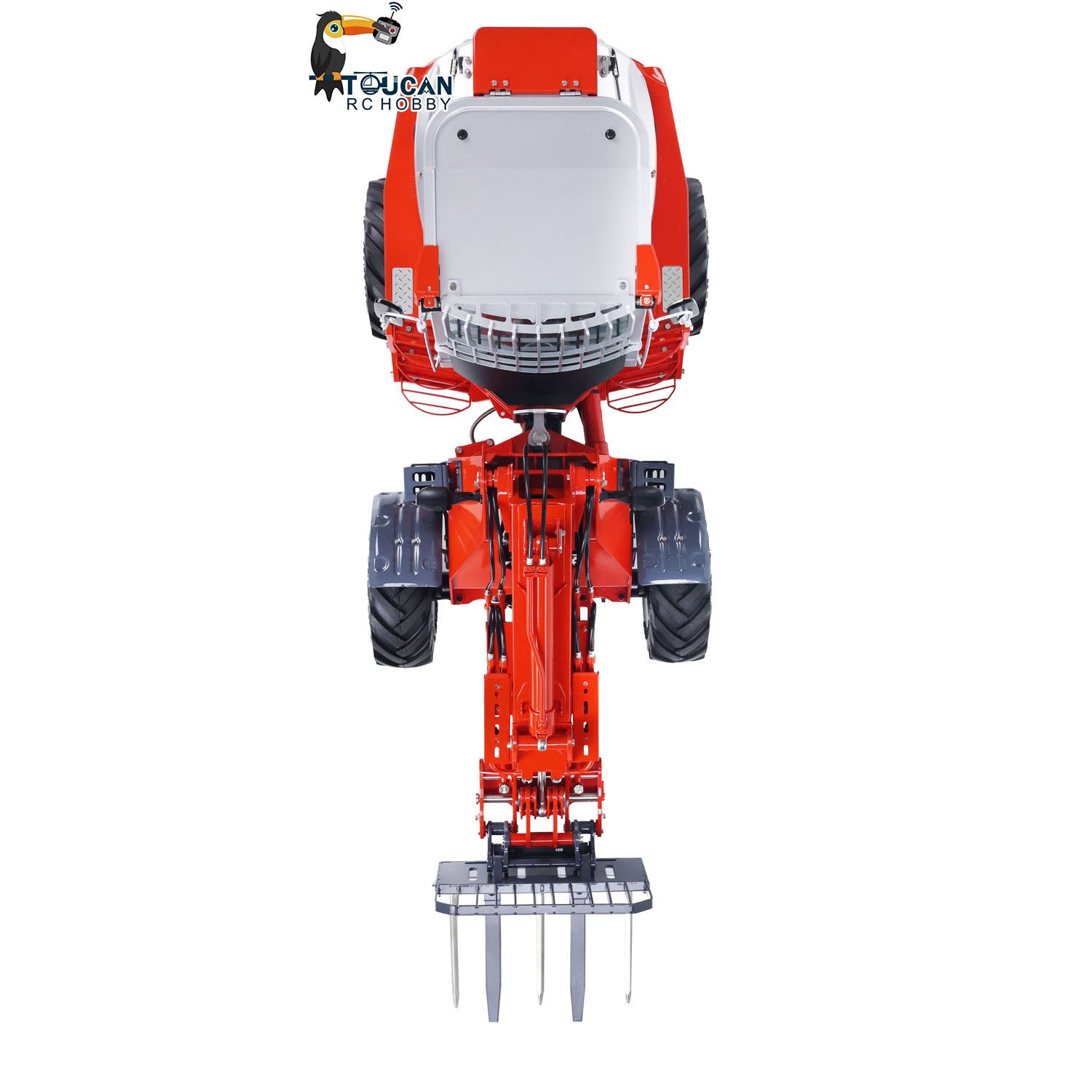

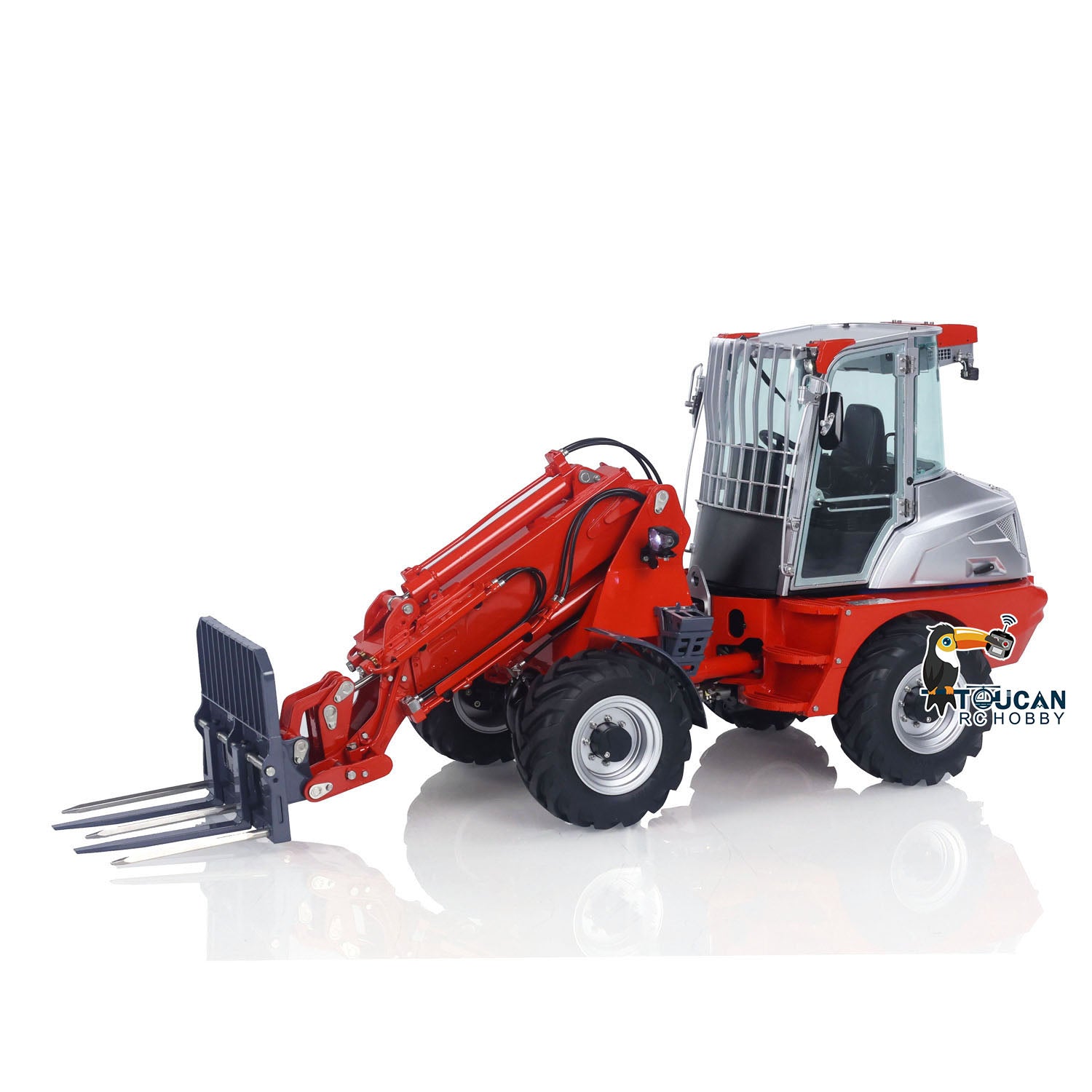

1/14 RC Telescopic Arm Fork Loader Model
ESC
Motor
Servo

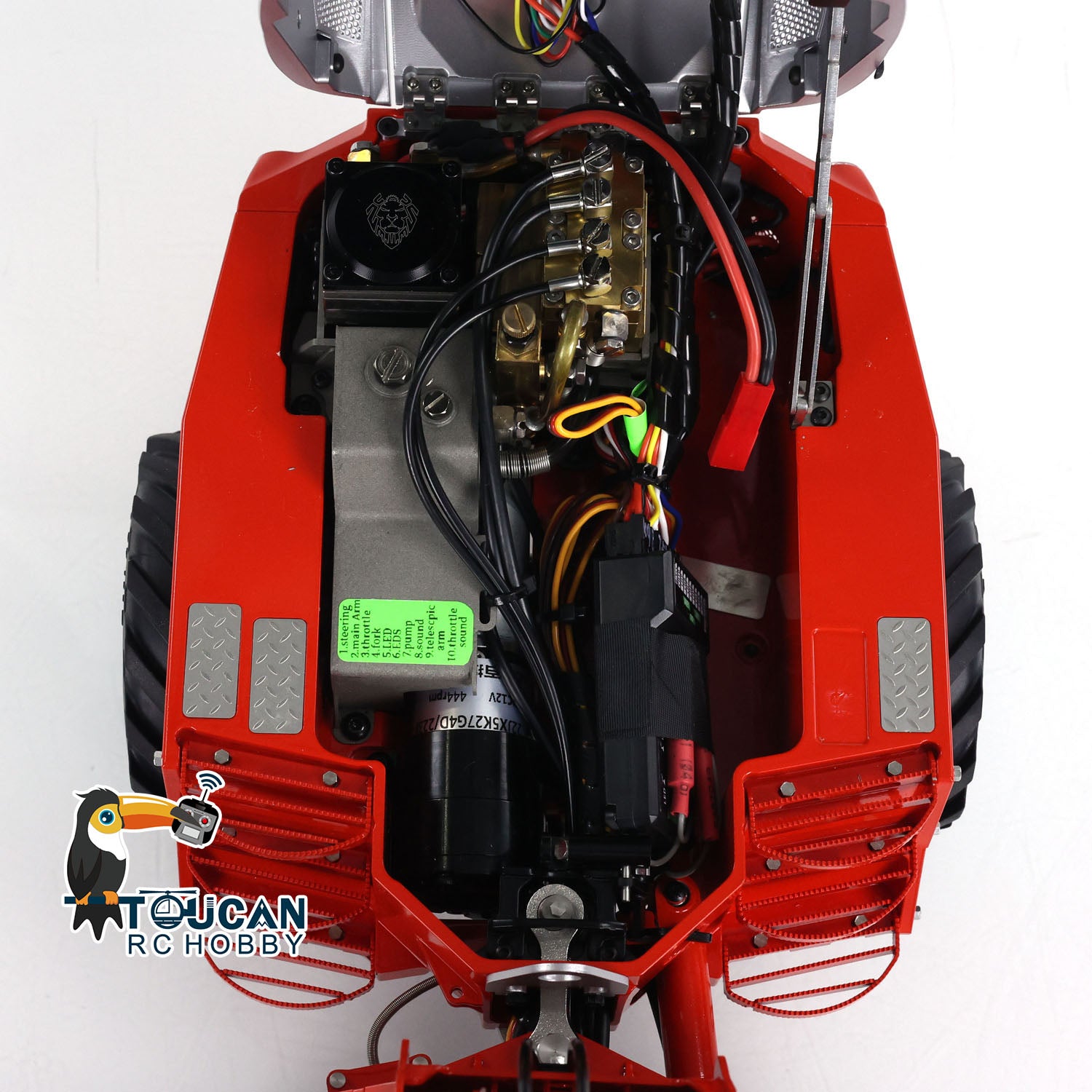

Hydraulic System
Light System
Sound System
There are some attachments for optional upgrade, the package option is selected by yourself.
RC Controller and Receiver
Charger
Battery
The Package Does Not Include:
Hydraulic Oil
Features:
1. Precision Hydraulic System: More coordinated, smooth, and linear movements.
2. Hydraulic Steering: Precise steering, more stable operation.

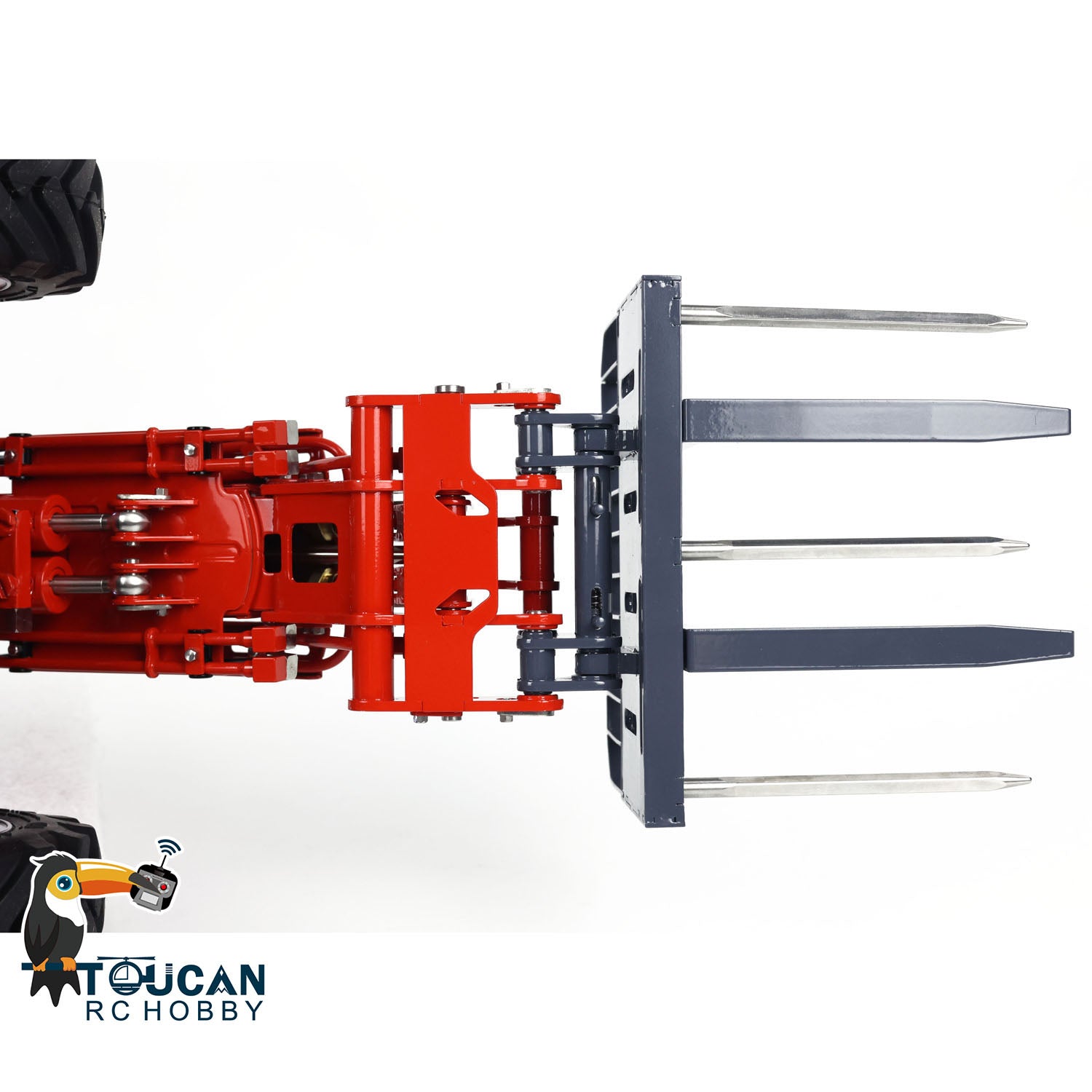

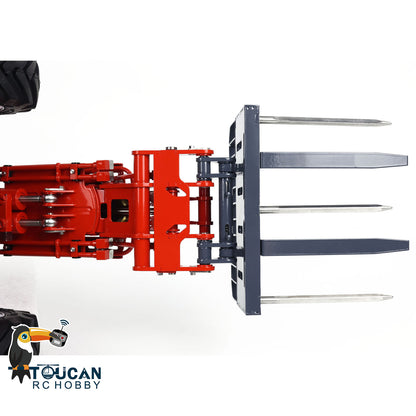

3. Hydraulic Fork Bucket: More flexible and convenient operation.

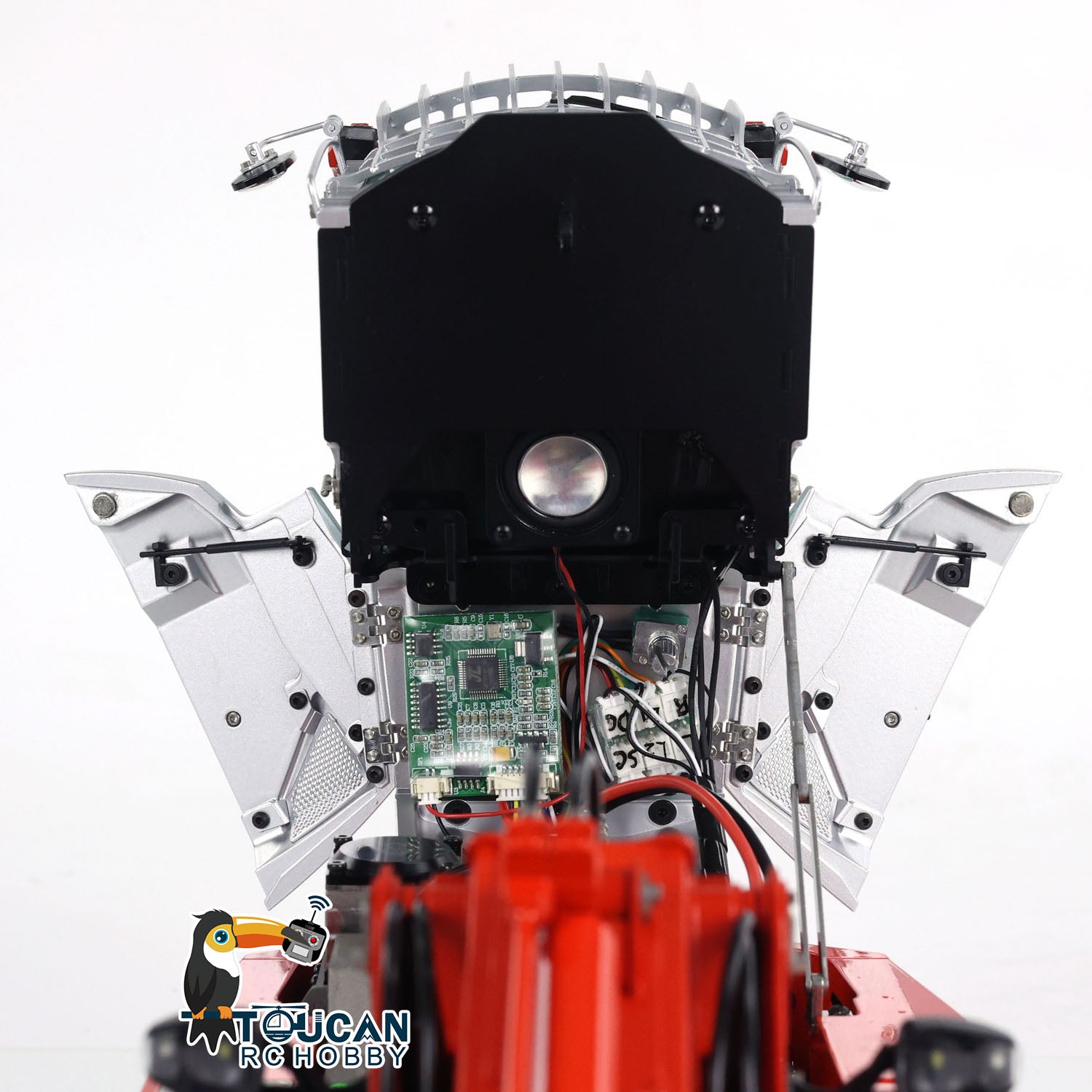

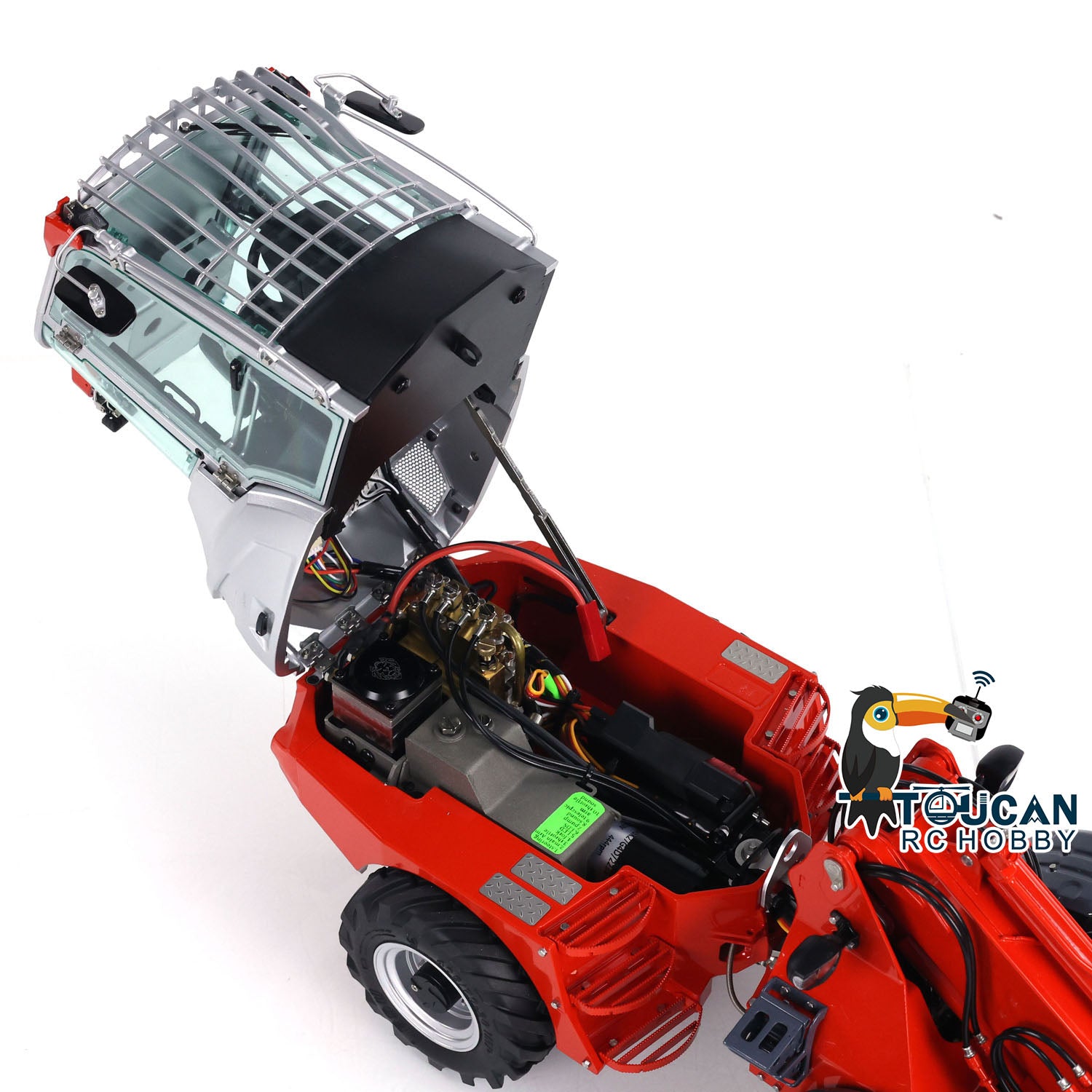

4. Equipped with a Flip-open Cab: The entire machine has 5 openable doors.
5. Full Vehicle Lighting and Simulated Sound: Equipped with a light and sound group for easier control.
6. Equipped with Simulated Stainless Steel Cab Guard: The machine is made of 90% metal materials.
Technical Parameters:
- Total Length of Loader (mm): 478
- Ground Clearance at Bottom of Fork Bucket (mm): 361.8
- Total Length to Chain Pin of Fork Bucket (m): 374.8
- Maximum Ground Clearance at Hinge Pin (mm): 373.4
- Length from Front Wheel to Fork Bucket Mounting Hole (mm): 118.4

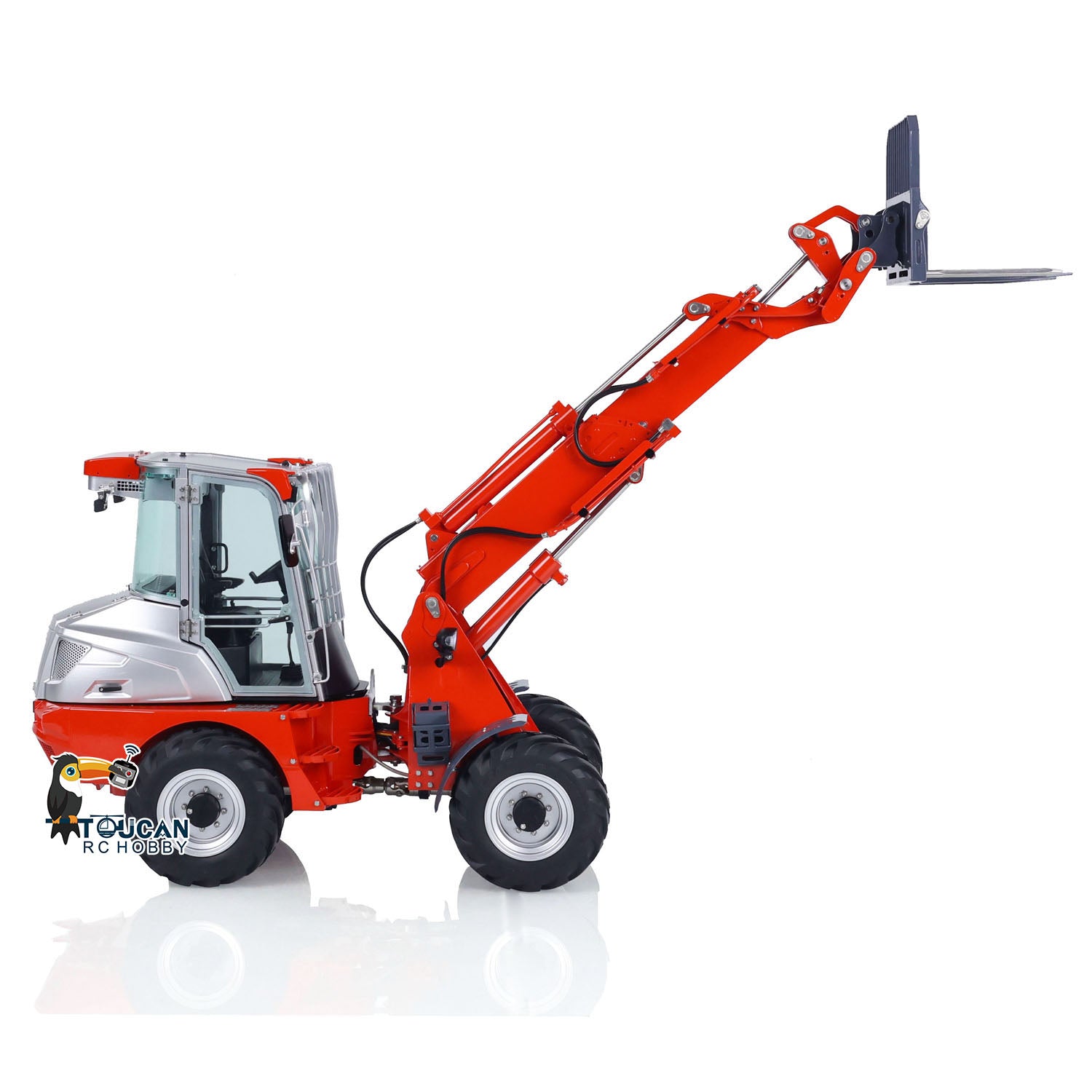

- Maximum Operating Height (mm): 461.2
- Wheelbase (mm): 161
- Track Width (mm): 135.1
- Length from Rear Wheel to Rear of Body (m): 95.4

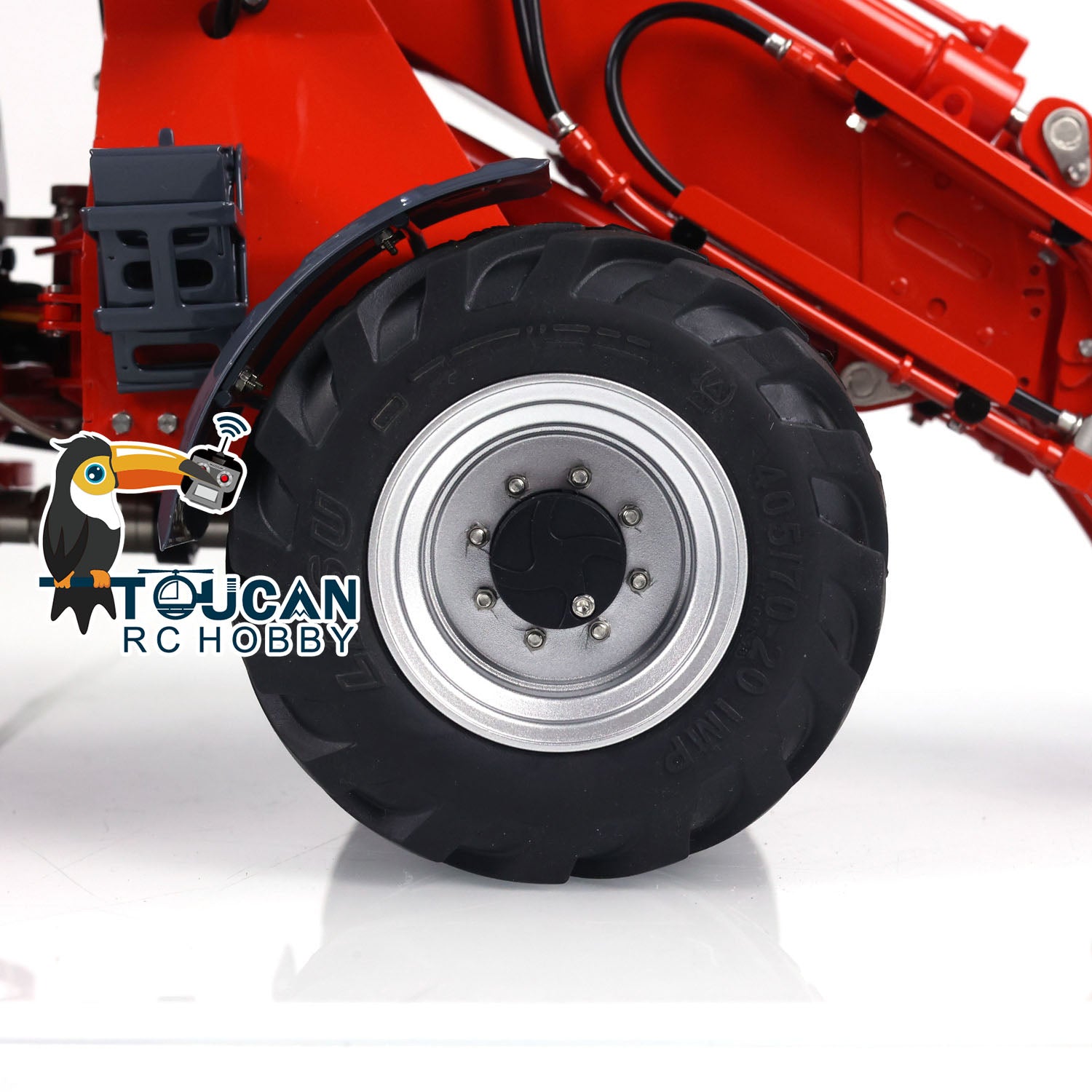

- Tire Outer Width (mm): 164.7
- Cab Ground Clearance (mm): 221.4

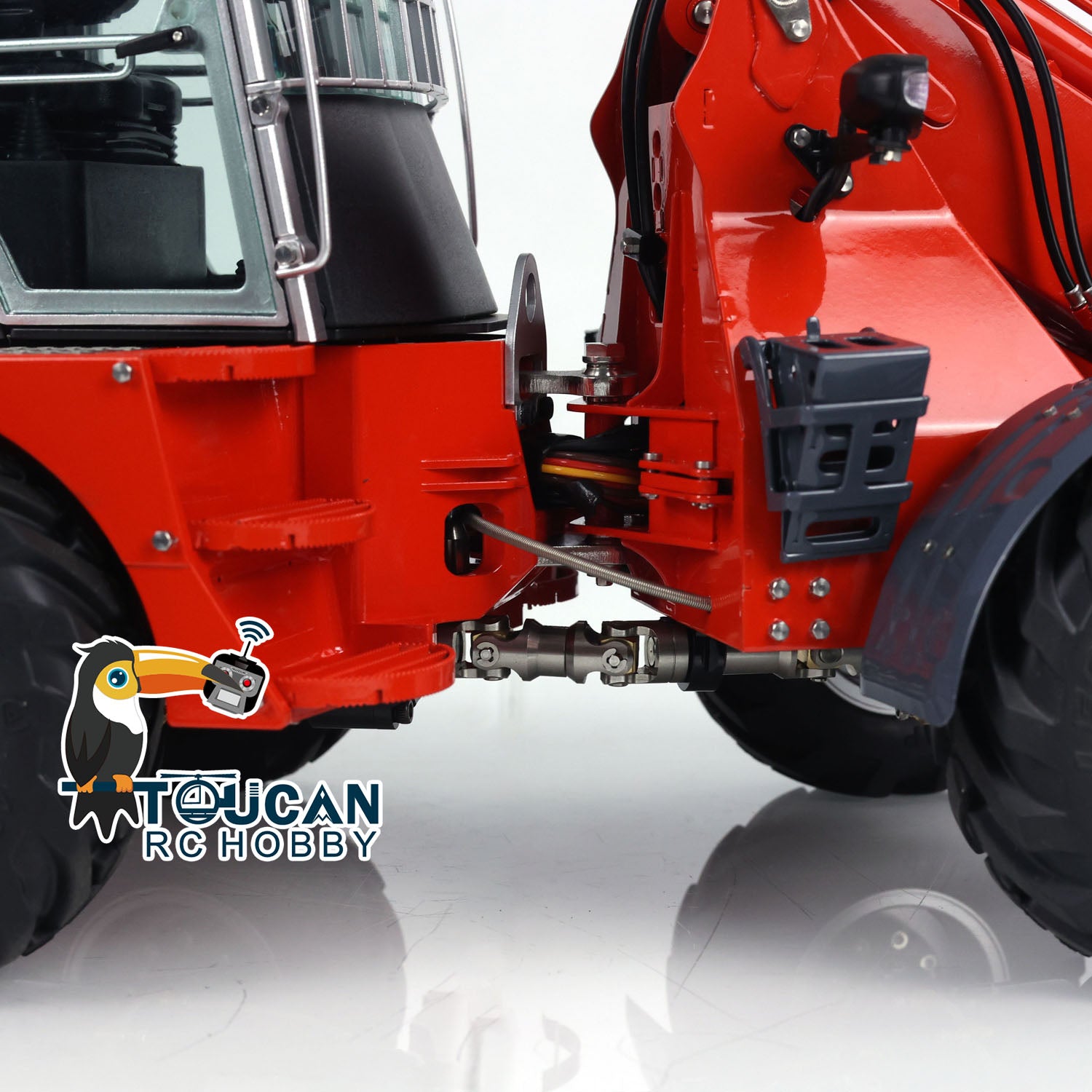

- Ground Clearance of Drive Shaft (mm): 33
- Work Station Ground Clearance (mm): 129.6
- Distance from Fork Teeth to Bucket Linkage Rod (mm): 52.5
- Maximum Unloading Height (mm): 287
- Number of Control Valve Ports: 2+3
- Maximum Pressure of Hydraulic Work Station (MPa): 3
- Number of Hydraulic Pumps: 1
- Rated Pressure of Hydraulic Work Station (MPa): 2
- Number of Hydraulic Cylinders: 5
- Hydraulic Hose Specifications (Outer Diameter x Inner Diameter) (mm): 2.5x1.5, 2x1
- Body Material: Aluminum Alloy + Stainless Steel
