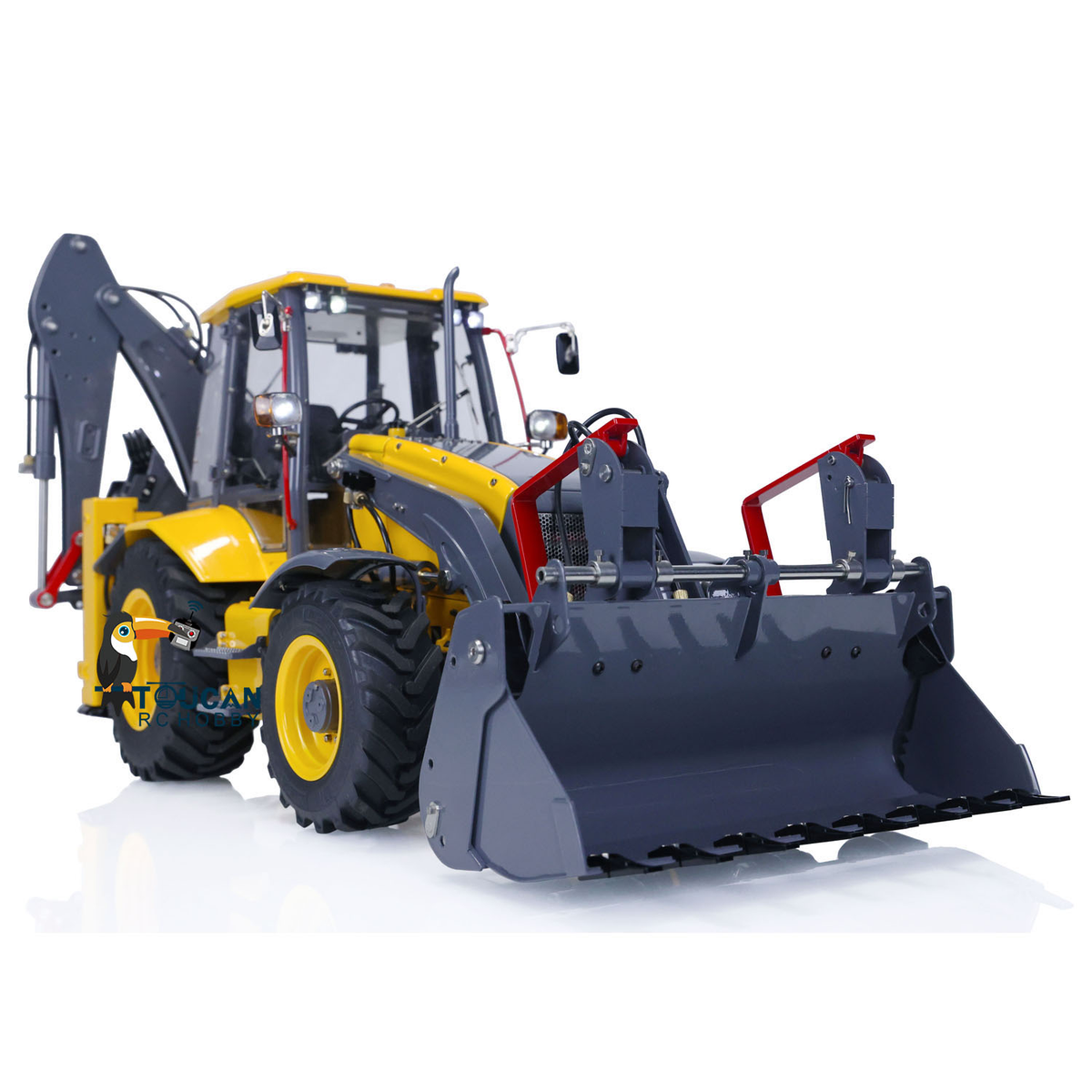

LESU 1/14 Metal Hydraulic RC Backhoe Loader AOUE BL71 2 in 1 Electric Excavator

Specification:
Product Condition: New, Assembled and Painted.
Scale: 1/14
Material: Metal, Plastic
Model Net Weight: About 8.4KG
Model Size: 513*214*283mm

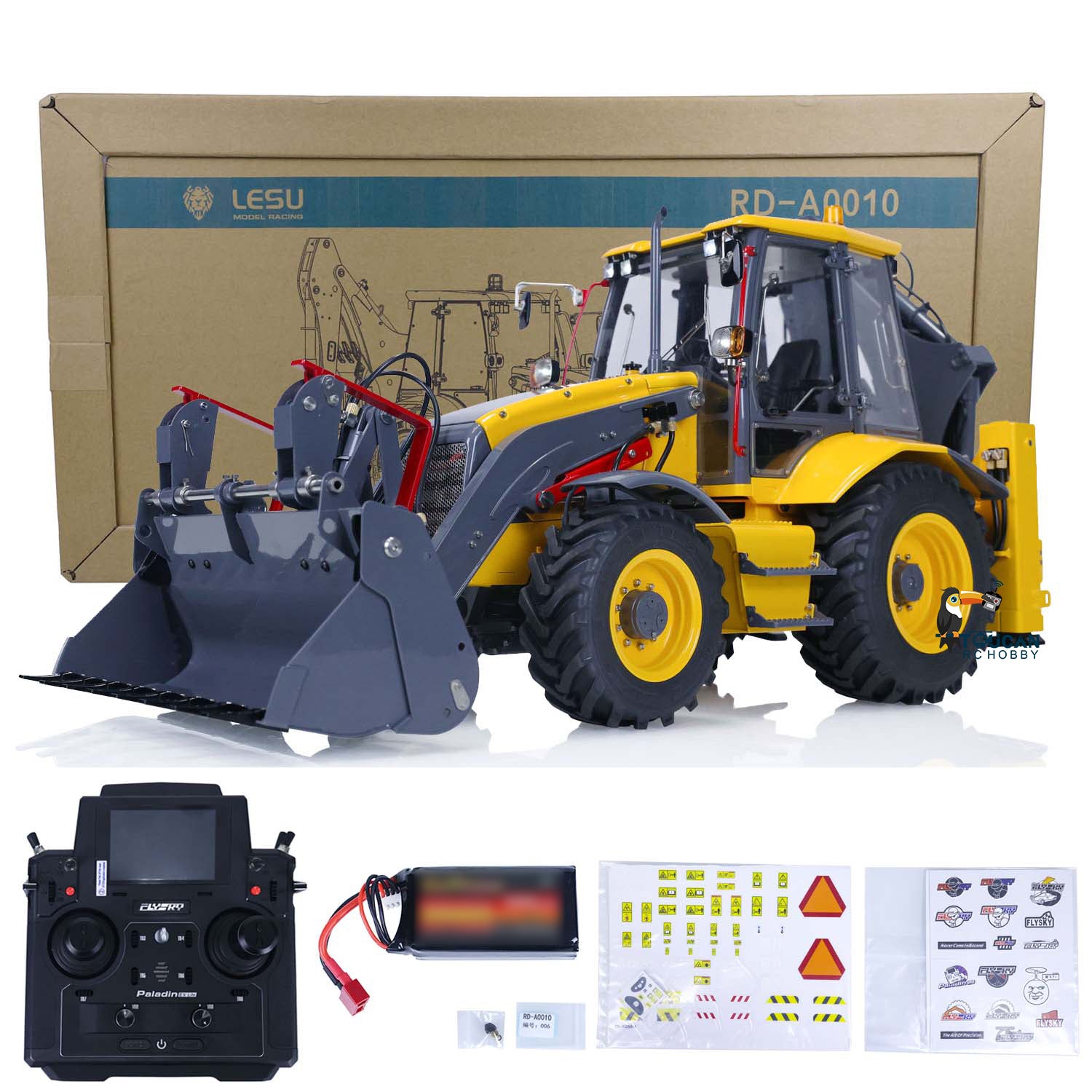

The Package Includes:
1/14 Painted and Assembled Metal 2-in-1 Hydraulic RC Backhoe Loader Excavator
Motor
ESC
Servo
Hydraulic System
Light System
Sound System
Rotating Light
PL18EV Lite RC Controller and Receiver
Battery

The package does not include:
Charger
Hydraulic Oil

Features:
1. Front and rear aluminum alloy wheels, high-quality rubber tire covers, full drive 4 * 4 power differential locking axle, and the reduction ratio of front and rear axles is 1:2.7.
2. CNC metal shell; The front shovel is equipped with a stainless steel bucket, and the bucket has a hydraulic opening and closing function.
3. Front fork, hydraulic front shovel, hydraulic bucket, one machine with multiple functions; The rear digging arm is equipped with a digging assembly to move laterally, and the digging range is larger.
4. Hydraulic support leg, more stable operation.
5 The rotary cab seat is convenient for the driver to operate at both ends and has a higher degree of simulation.
6. The hydraulic system is equipped with a hydraulic reversing valve, switching valve, brushless ESC, oil pump, fine stainless steel oil cylinder, overflow valve and other hydraulic components to form a precise hydraulic system, which is more coordinated and linear.
7. Equipped with a light system and sound system, it is more simulated and the whole body is full of details.
8. High simulation spraying to restore the real machine paint to a greater extent.

Maximum operating height: 364mm
Height of bucket hinge pin from the ground: 255mm
Minimum ground clearance: 24mm
Height of shovel teeth from the ground: 200mm
Outside width of tire: 196mm
Bucket tilt angle: 39 degree
Distance between bucket teeth and tipper linkage: 89mm
Height from the top of the cab to the ground: 244mm
Wheelbase: 169mm
Distance between the rear wheel and rotating seat: 134mm
Maximum distance between rotating seat and bucket: 477mm
Distance between the rotating base and the highest point: 283mm
Height of shovel teeth from the ground: 282mm
Height from the highest point to the ground: 416mm
Excavation depth: 330mm
