#Specification:
Manufacturer: LESU
Item Condition: New, Assembled and Painted.
Scale: 1/10
Material: Metal, Rubber, Plastic, Wood
Color: Yellow, Grey
Vehicle Size: 490*238*273mm
Recommended Battery??Not Included): HRB 3S Li-Poly Battery (Please contact me if you want to buy the battery)
ID: LS-RA-Z002-PNP-YBK
#The Package Includes:

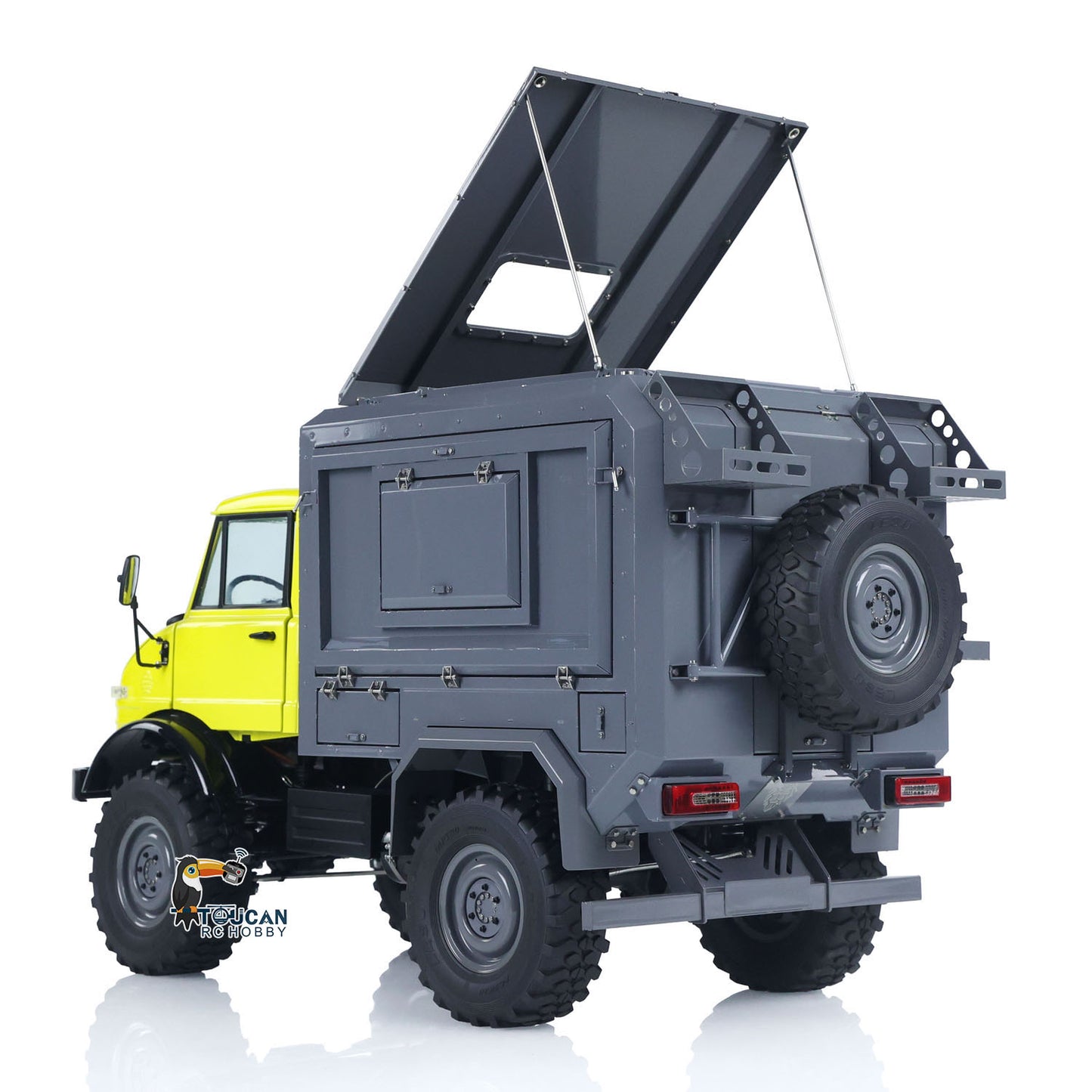

1/10 RC Off-road Vehicle Model
2 Speed Transmission
Winch
Motor
ESC
Servo

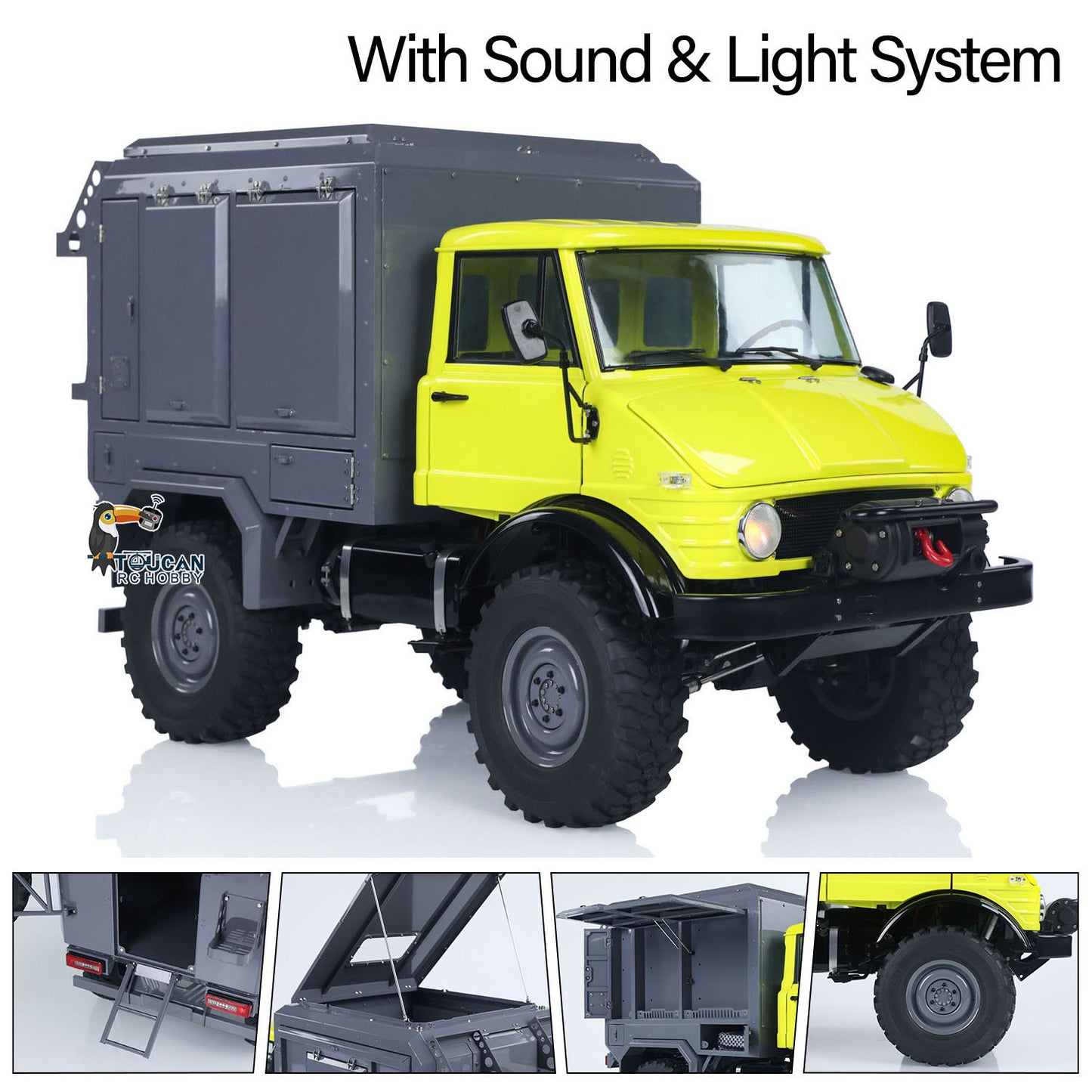

Sound System
Light System
#The Package Does Not Include:
Remote Controller and Receiver
Battery
Charger

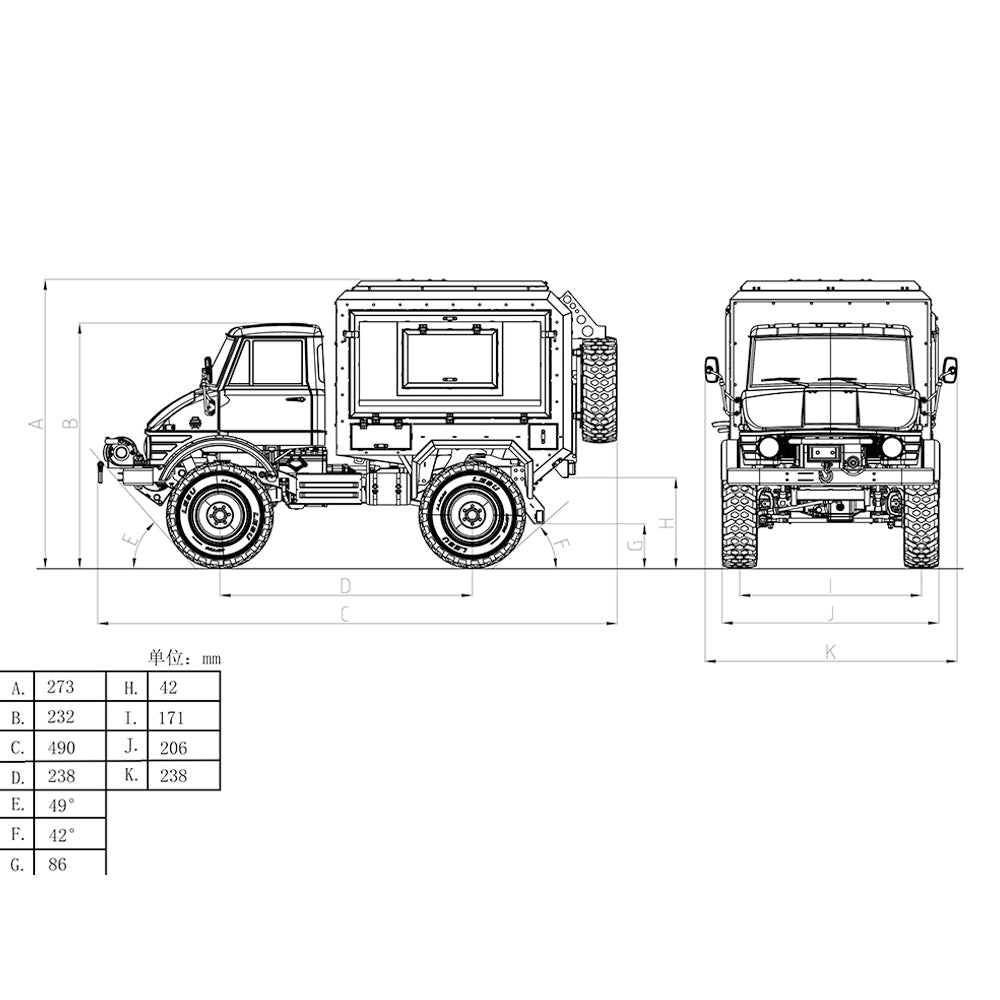

#Parameter
A. Height at the highest point from the ground: 273
B. Height of the top of the cockpit from the ground: 232
C. Body length: 490
D. Wheelbase: 238
E. Front approach angle: 49??
F. Rear departure angle: 42??
G. Height of the cargo bed from the ground: 86
H. Minimum ground clearance: 42
I. Chassis track width: 171
J. Width of the mudguard: 206
K. Total width: 238
#About the ESC and Motor: Hobbywing QuicRun Fusion SE 1200KV
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensored
Waterproof: Yes
Cont./Peak Current: 40A
Input Voltage: 2-3S Lipo/6-9 Cell NiMH
BEC Output: 6V/7.4V@4A???¡ì|6A peak (Note: 7.4V voltage can be output only when using 3S Lipo)
Motor KV: 1200KV
Diameter/length of Motor: 36mm / 58.1mm
Shaft diameter / exposed shaft length: 3.175mm / 16.5mm
Motor Poles: 4
Input Wires: Red-14AWG-200mm*1 / Black-14AWG-200mm*1
Input Connectors: XT60
SET Button on ESC: Not Supported
LED Program Box: Supported
LCD Program Box: Not Supported
OTA Programmer: Not Supported
Program Port: Independent programming interface(switch position)
Firmware Upgrade: Not Supported
Size: 36X58.1mm
Weight: 201g (including wires&connectors)
