LESU 1:14 Scale Aoue LR945 KIT RC Hydraulic Excavator B0016

Specification:
Manufacturer: LESU

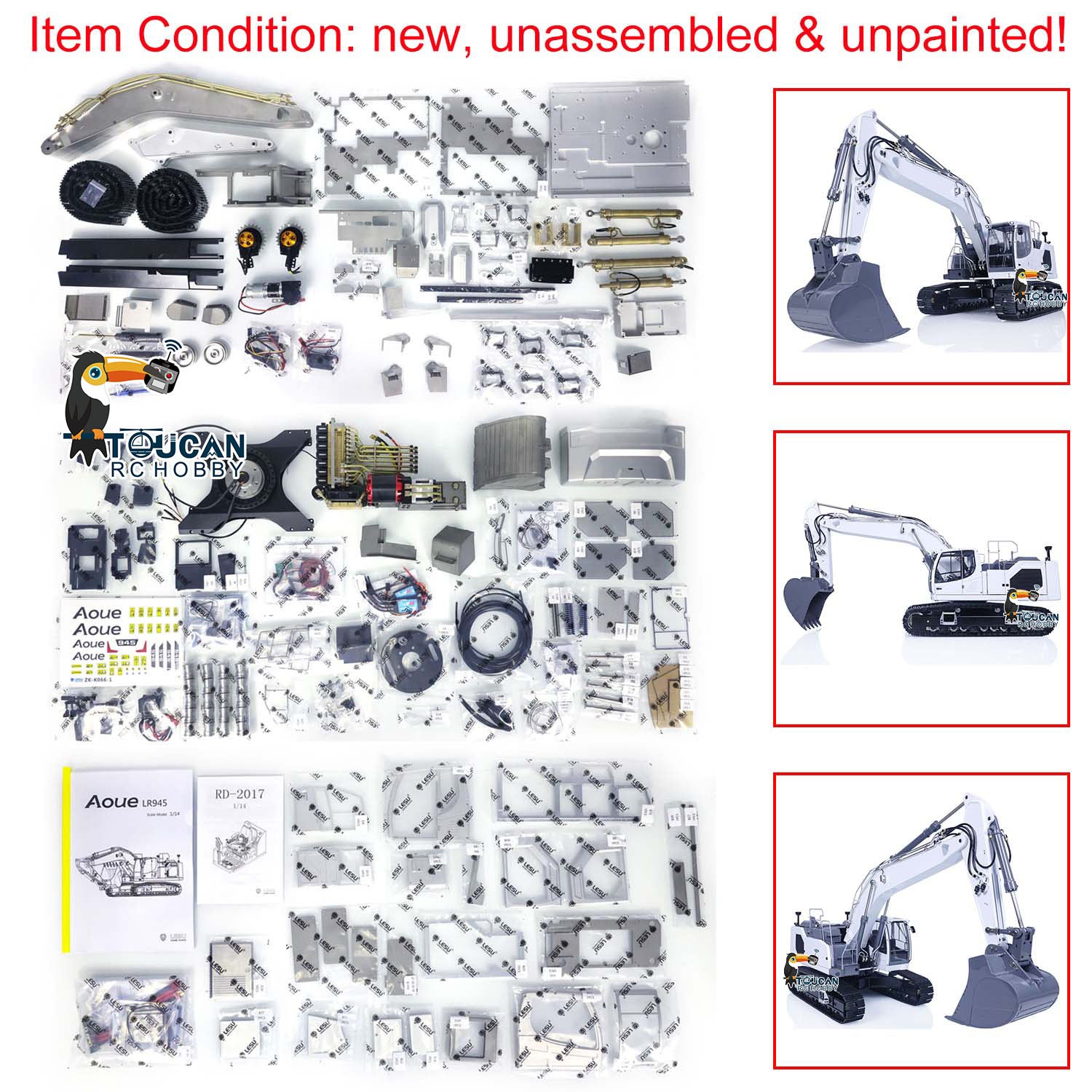

Item Condition: New, Unpainted and Unassembled
Material: Metal, Plastic
Size: 795*268*257mm
Wheelbase: 215mm
Product Weight: 18.2KG
ID: LS-BA-B0016-KIT

Please note that the package is depends on your choice.

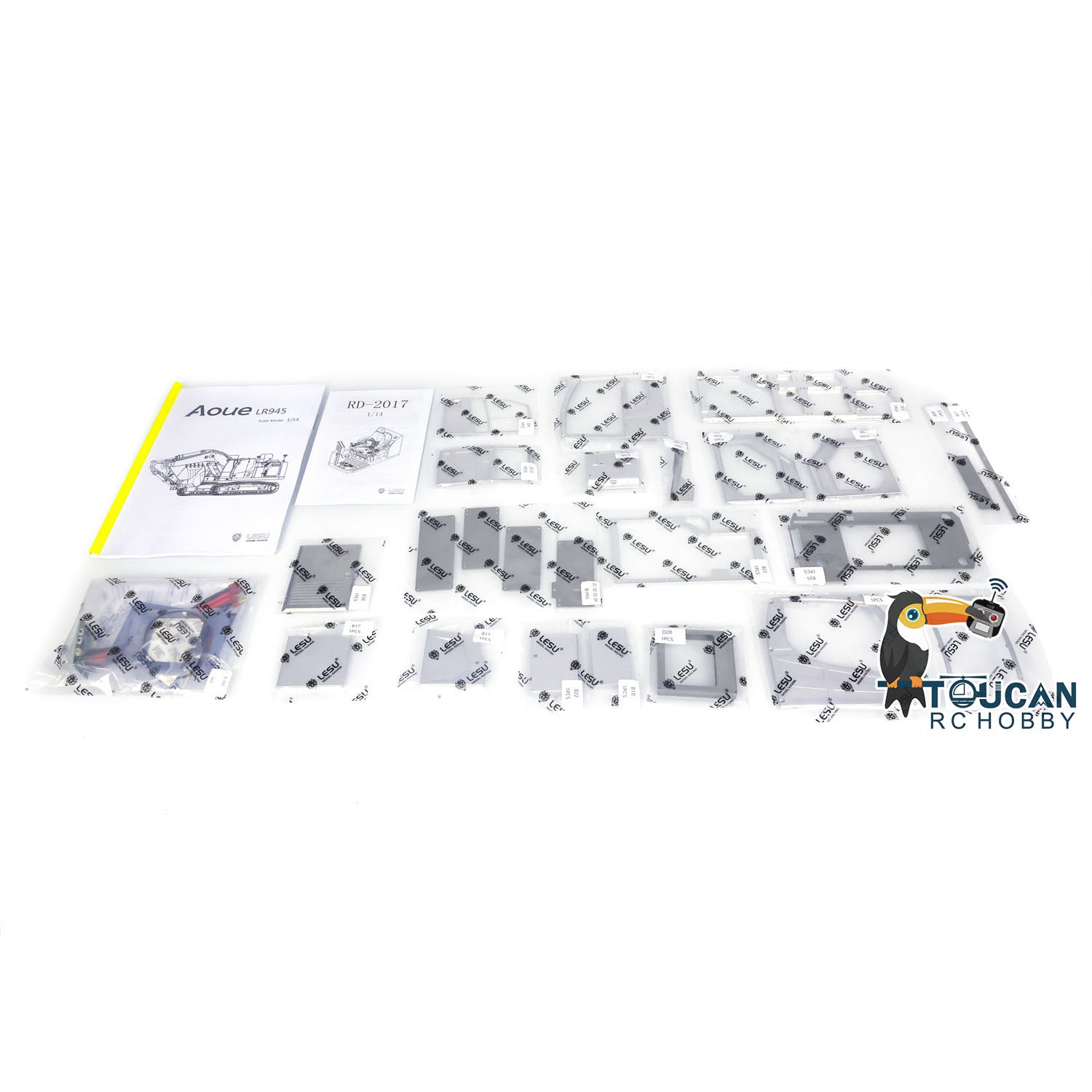

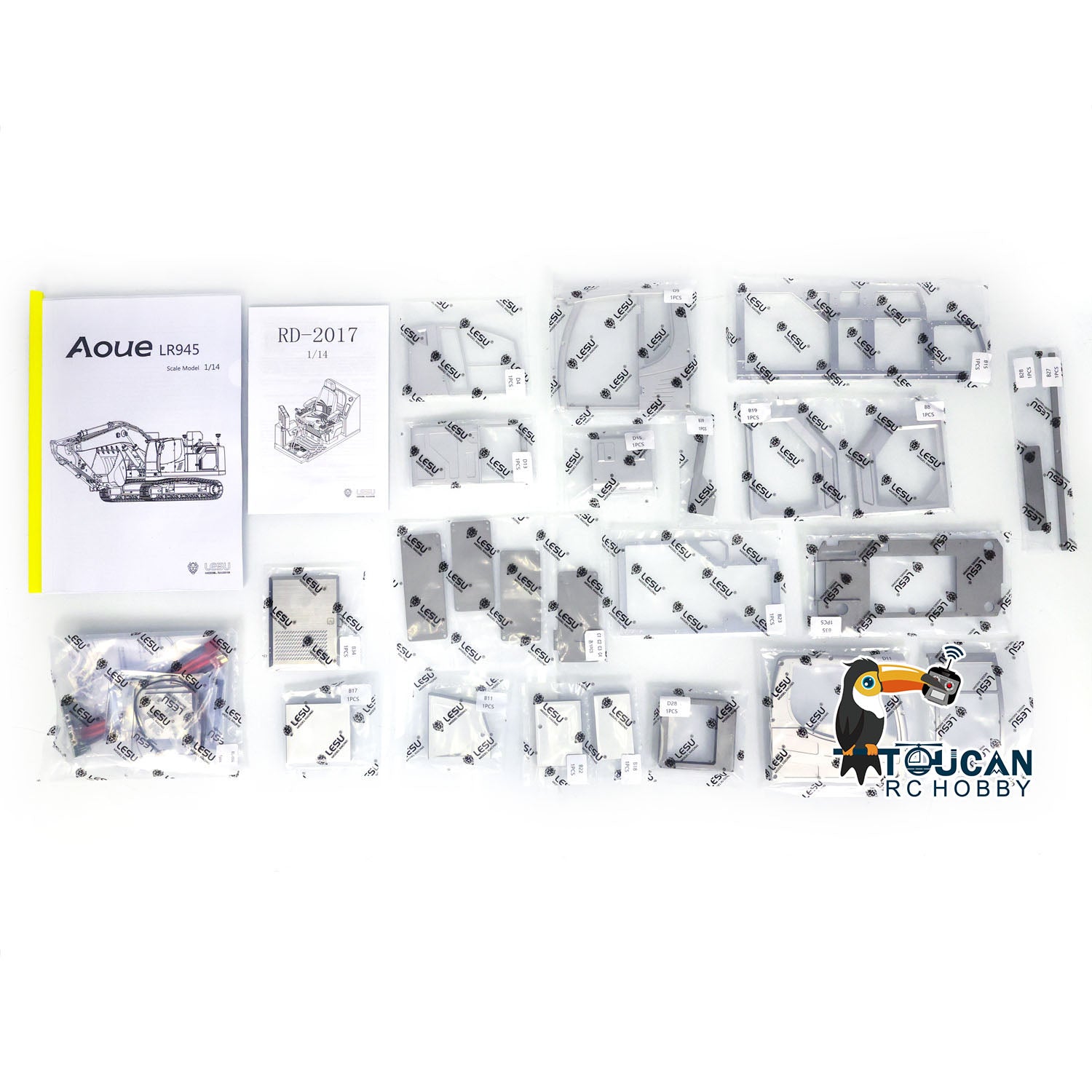

The Package Unpainted Unassembled KIT Includes:
1/14 RC Hydraulic Excavator Model Parts
Motor
Servo
ESC
Hydraulic System
Light System

The Package Unpainted Unassembled KIT Does Not Include:
Sound System
Remote Controller and Receiver
Charger
Battery
Hydraulic Oil

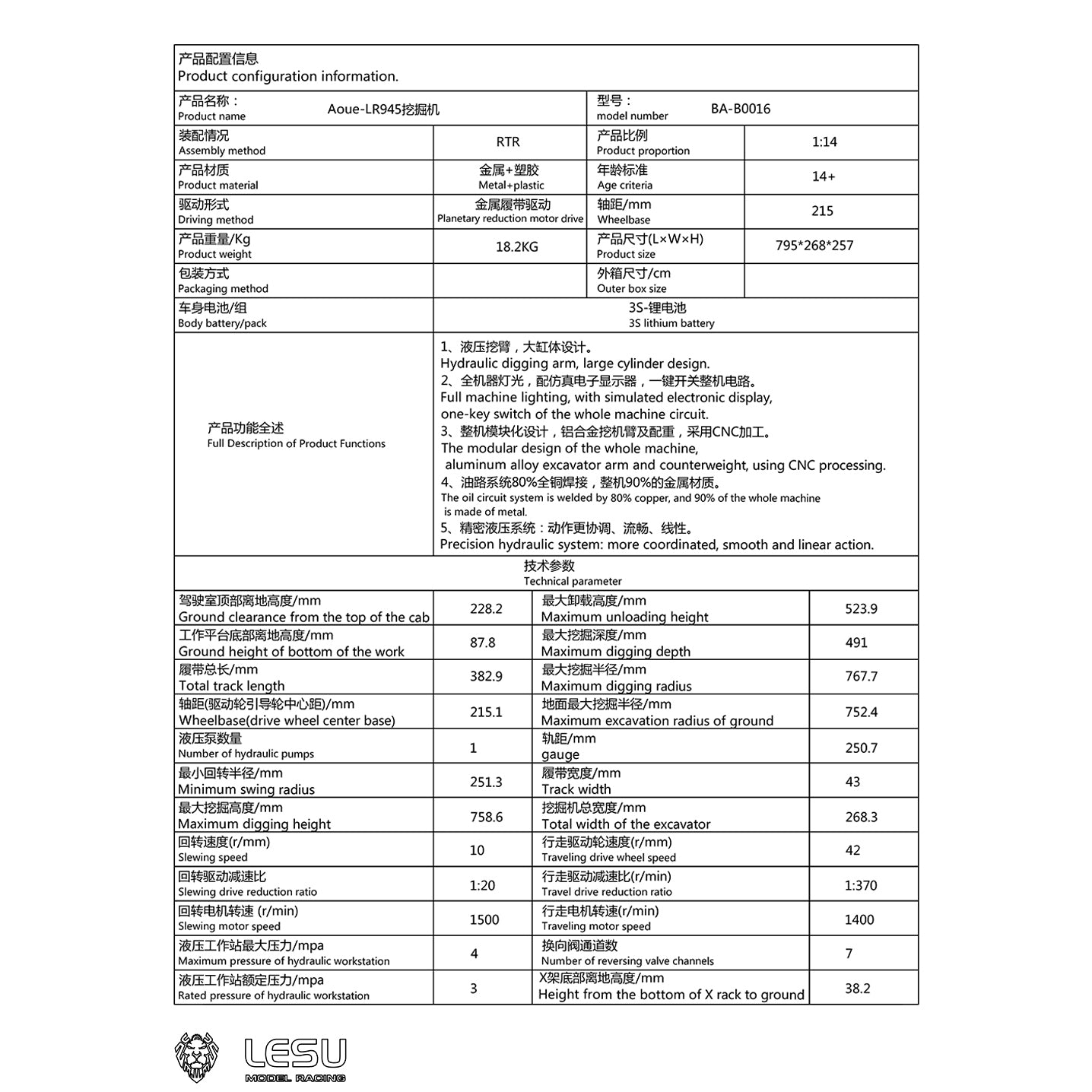

Parameters:
Ground clearance from the top of the cab: 228.2 mm
Ground height of bottom of the work: 87.8 mm
Total track length: 382.9 mm
Wheelbase(drive wheel center base): 215.1 mm

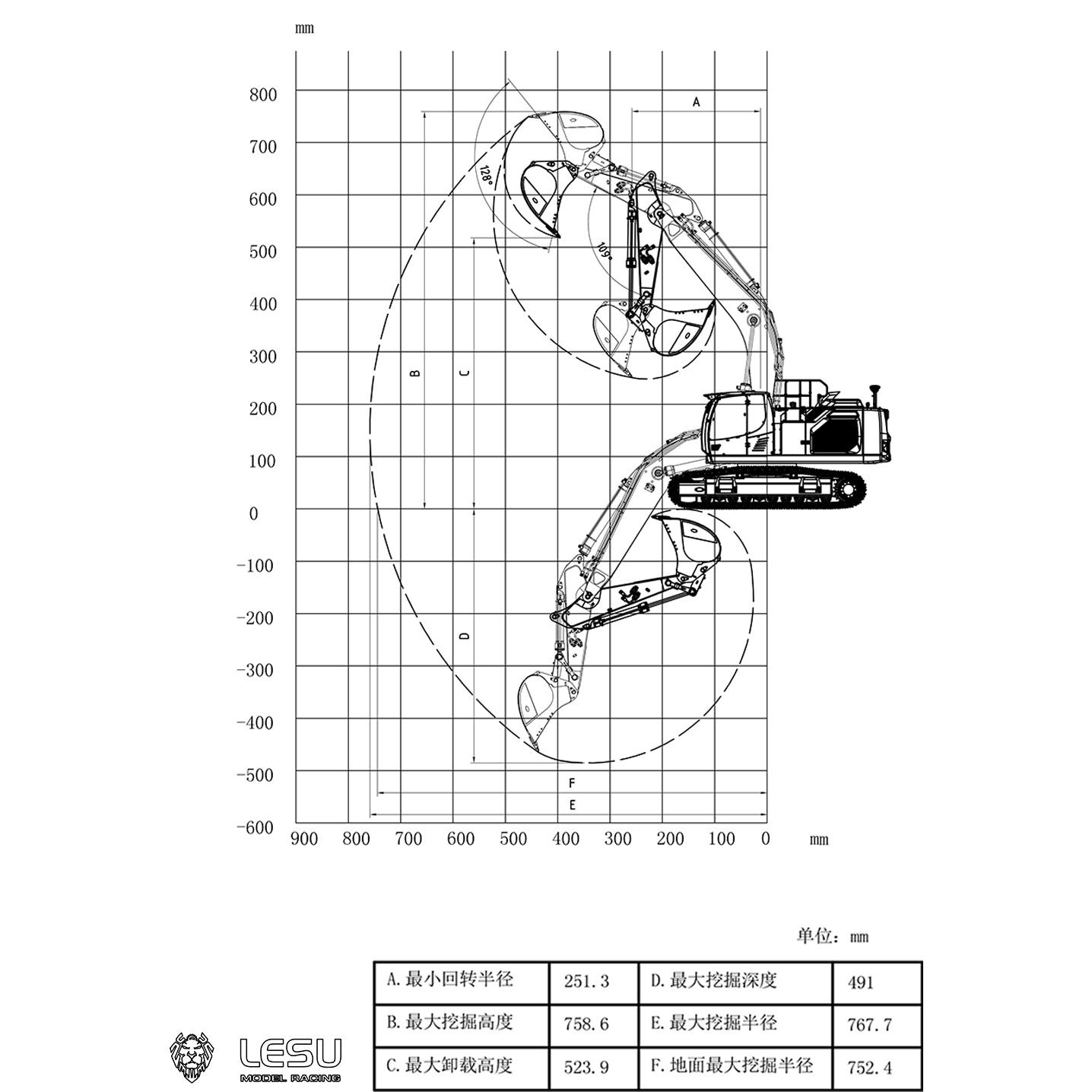

Minimum swing radius: 251.3 mm
Maximum digging height: 758.6 mm
Slewing speed: 10 r/mm
Slewing drive reduction ratio: 1:20
Slewing motor speed: 1500 r/min
Maximum pressure of hydraulic workstation: 4 mpa
Rated pressure of hydraulic workstation: 3 mpa
Maximum unloading height: 523.9 mm
Maximum digging depth: 491 mm
Maximum digging radius: 767.7 mm
Maximum excavation radius of ground: 752.4 mm
Gauge: 250.7 mm
Track width: 43 mm
Total width of the excavator: 268.3
Traveling drive wheel speed: 42 r/mm
Travel drive reduction ratio: 1:370 r/min
Traveling motor speed: 1400 r/min
Number of reversing valve channels: 7
Height from the bottom of X rack to ground: 38.2 mm

Features:
1. Hydraulic excavator arm with a large cylinder body design provides powerful and precise digging capability, making it ideal for a wide range of construction and excavation projects.
2. The entire machine is equipped with realistic lighting and electronic displays, and a convenient one-button circuit control system, allowing for easy operation and enhanced accuracy.
3. The modular design and aluminum alloy excavator arm and counterweight, precision CNC machined for durability and reliability, provide flexibility and ease of maintenance.
4. The oil circuit system is 80% welded with copper, and 90% of the machine is made of metal materials, making it strong and durable enough to withstand even the most demanding work environments.
5. The precise hydraulic system ensures smooth and linear movement, providing exceptional coordination and fluidity in operation, which is critical in construction and excavation work.

If you have any questions or are not sure whether it is the correct item you want, pls feel free to contact me before purchasing.
