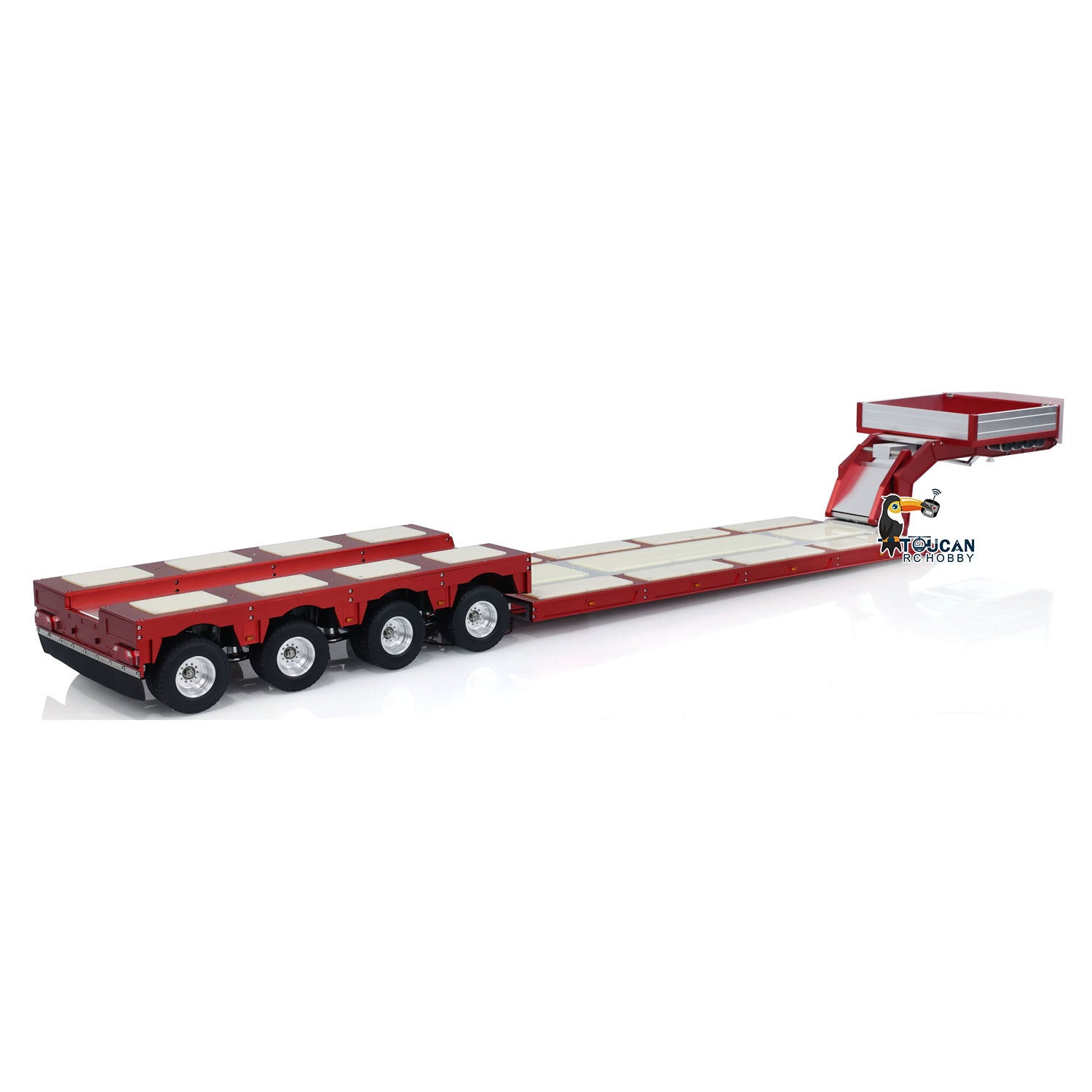

New Version 1/14 4 Axles RC Heavy Trailer Degree 999 CNC Goose-neck Trailer

Specification:
Item Condition: New, Assembled and Painted.
Scale: 1/14
Material: Aluminum Alloy, Plastic, Rubber
Size: 1280*170*197mm
Weight: 7KG
Battery: 2S 7.4V Lipo Battery(Not Included)
Suitable For: 1/14 RC Tractor Truck, DIY Models
ID: DG-999-V2

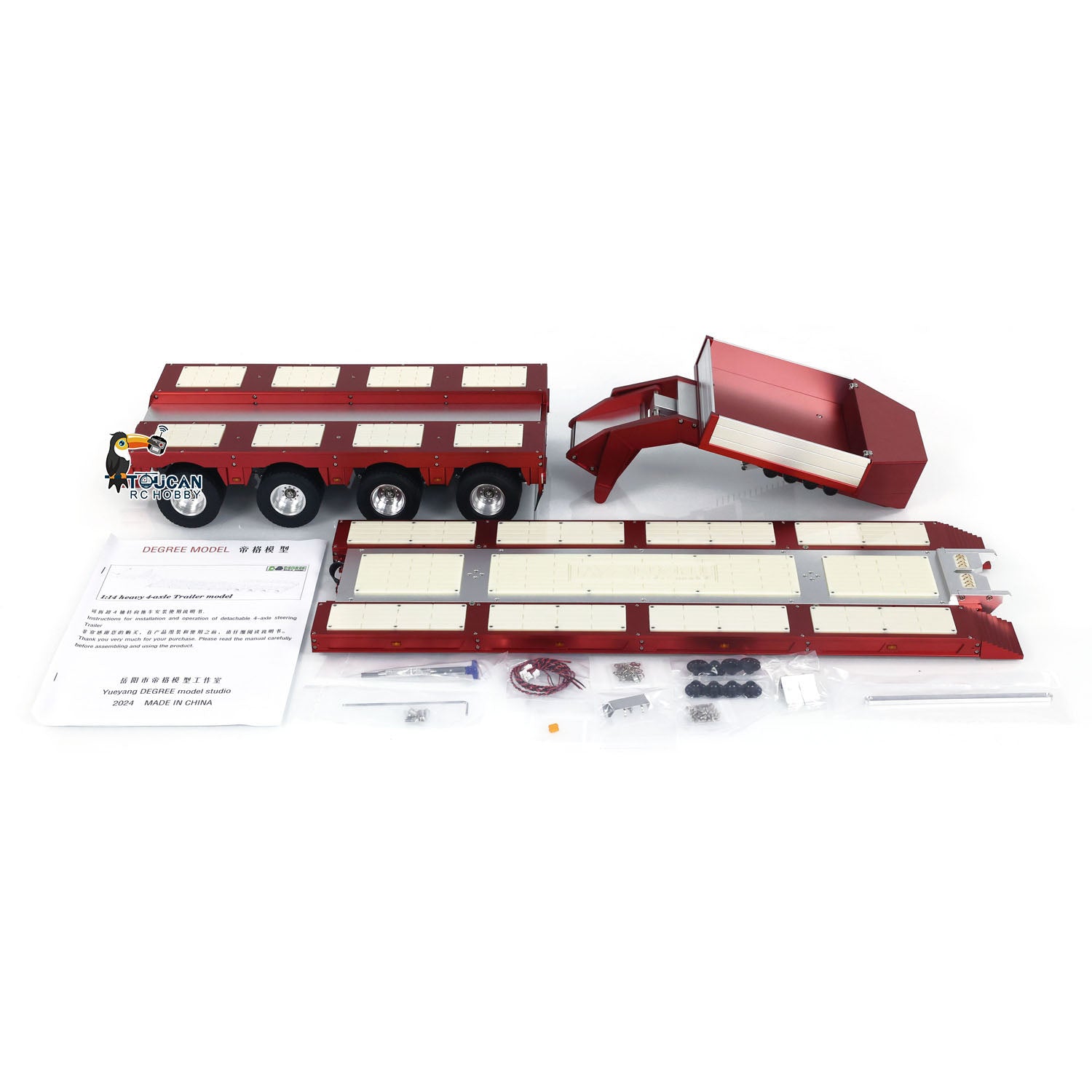

The Package Includes:
1/14 RC Trailer Model
Servo
Motor
ESC
Light System

The Package Does Not Include:
Remote Controller and Receiver
Battery

Features:
1. The whole length of the trailer is 1280mm, the horizontal height is 170mm, the horizontal clearance from the ground is 13mm, and the middle width is adjusted by 195-251mm;
2. The weight of the trailer is 7kg, and the load limit weight is 30kg;
3. It is recommended to use 2s (7.4v) 3000 MAH lithium battery;
4. The wheels of the trailer can rotate with the direction of the tractor truck;

Note:
1. It is suggested that the electric adjustment of the screw motor should not raise and lower the full throttle. Due to the electric adjustment developed by ourselves, the heat dissipation and current should be reserved. When the full throttle is turned on, it is easy to lose the signal and restart the electric adjustment.
2. In the process of driving, it is necessary to pay attention to the retraction and placement of the front jack-up steering gear to prevent the steering gear mechanism from standing against the rear girder of the truck, resulting in the burning of the servo steering gear.
3. In the process of driving, when there is a transportation load in the middle, it is strictly prohibited to adjust the width. Otherwise, the width adjustment fails and the width adjustment servo motor burns down.
4. There are Brake lamps, clearance lamps, license lamps, reversing lamps, left turn signal lamps, and right turn signal lamps; The light transmission is Bluetooth transmission. Pay attention to the signal interference. If the red lights of the transmitter and the receiver are flashing, it means that the signal is lost without matching.
Each socket at the transmitting end is divided into positive and negative poles, connected to a light wire corresponding to the headlamp group.
5. The light system includes the transmitter and the receiver. The receiver and lights have been installed on the Trailer. The transmitter needs to be wired by yourself.

If you have any questions or are unsure whether it is the correct item you want, please feel free to contact me before purchasing.
