Specification:
Manufacturer: CUT
Item Condition: New, Painted and Assembled
Material: Metal, Plastic (Most of the parts are made of metal, with the exception of the cabin glass and some decorative parts made of plastic)
Size: 547.9*162.9*234.6
Net Weight: About 8.5KG
Scale: 1/14
ID: CUT-C914-Excavator-5CH-RTR-YW
The Package Includes:
1/14 RC Hydraulic Excavator Model
ESC
Motor
Servo
Light System
Sound System
Hydraulic System with 5-ways Reversing Valve
Integrated Pump and Oil Tank

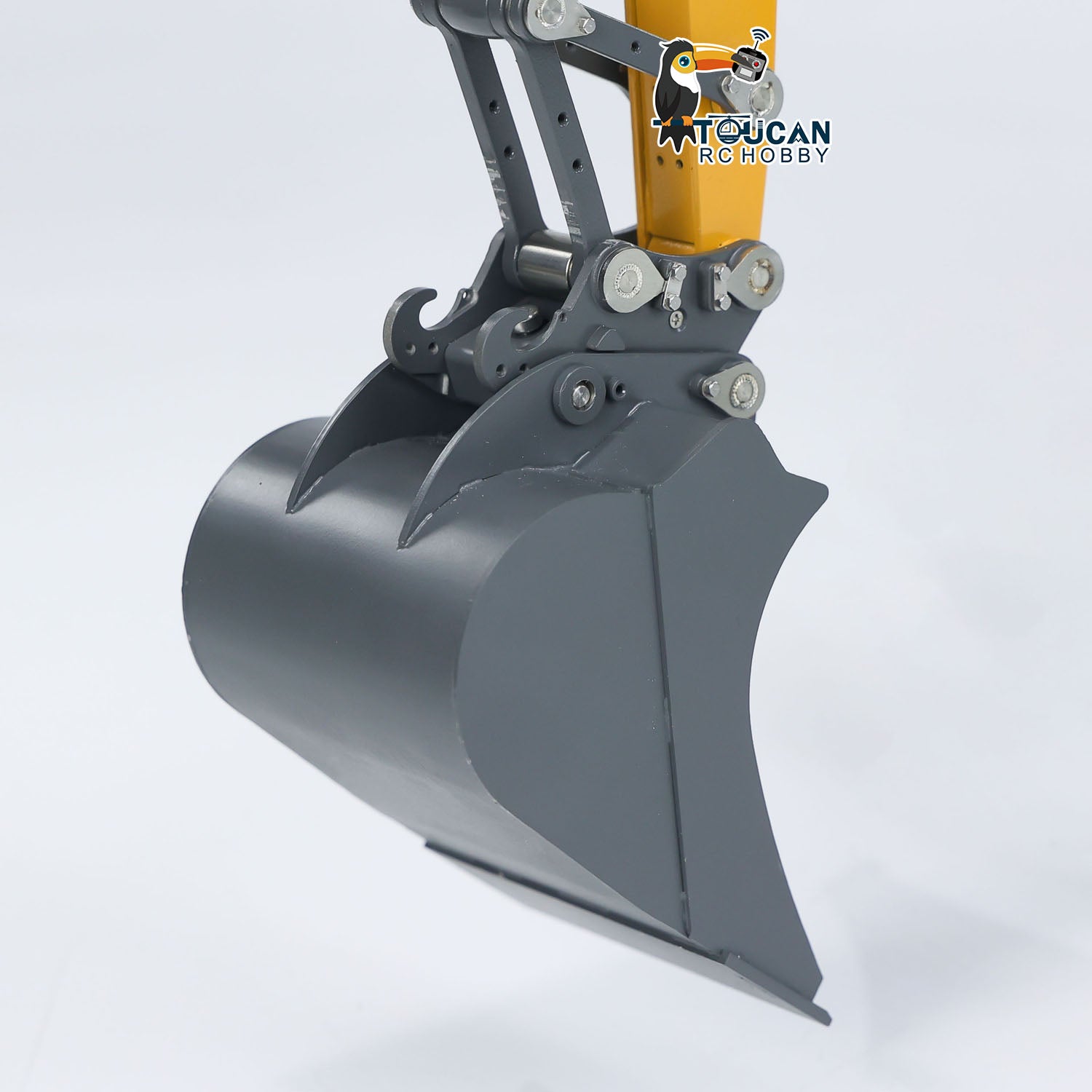

Manual Quick Release Coupler
Rotating Warning Lights
Spotlights

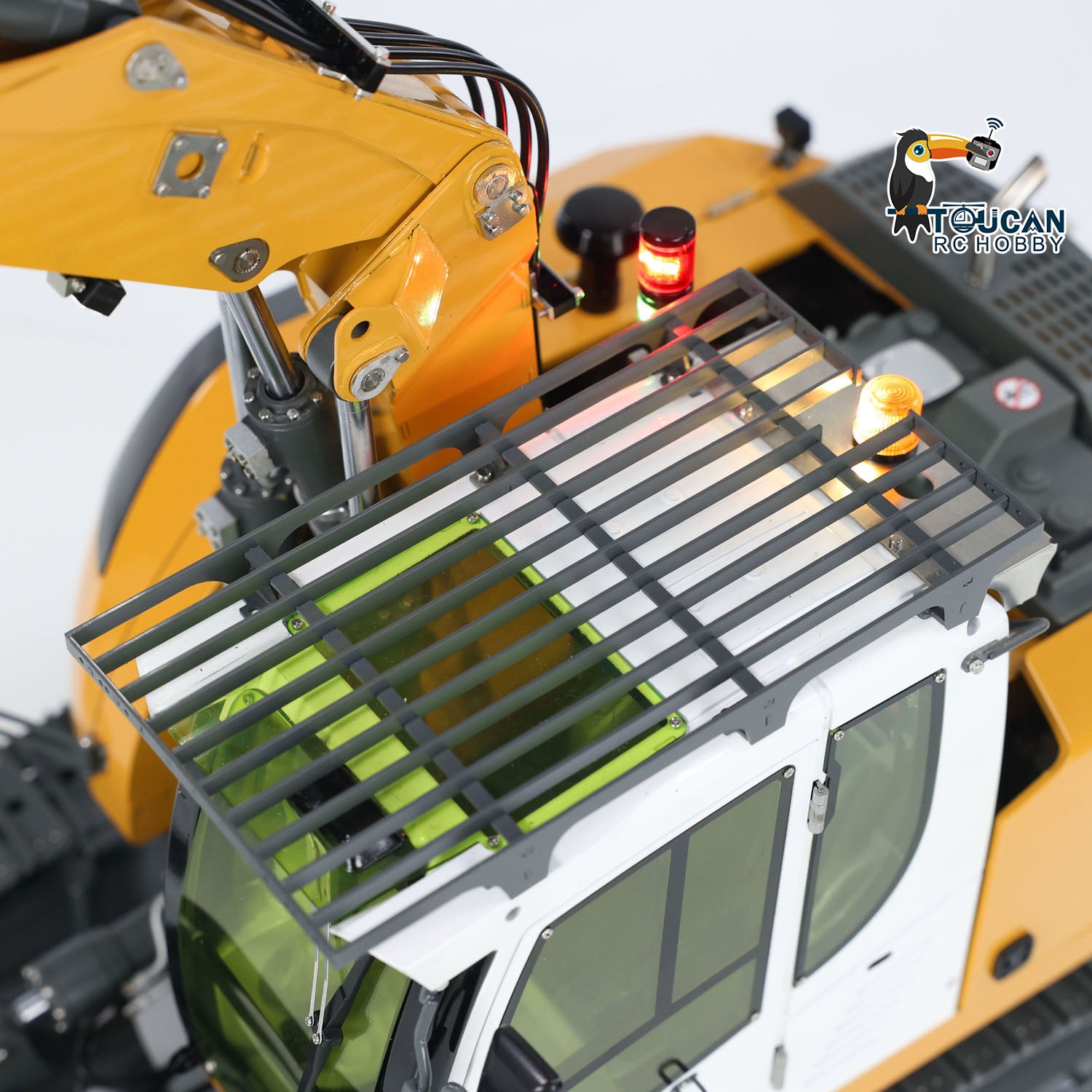

Cabin Roof Guard Rail
Cabin Rear Roof Guard
FlySky ST8 Remote Controller and Receiver
Battery
The Package Does Not Include:
Charger
Hydraulic Oil
Static Parameters
- Body width (mm): 194
- Ground clearance at upper edge of tracks (mm): 69.3
- Ground clearance at top of body (excluding exhaust pipe) (mm): 184.6
- Ground clearance at top of cab (excluding protective net) (mm): 221.3
- Ground clearance of counterweight (mm): 80.9
- Wheelbase (mm): 239.1
- Standard track width (mm): 35
- Distance between tracks (mm): 163

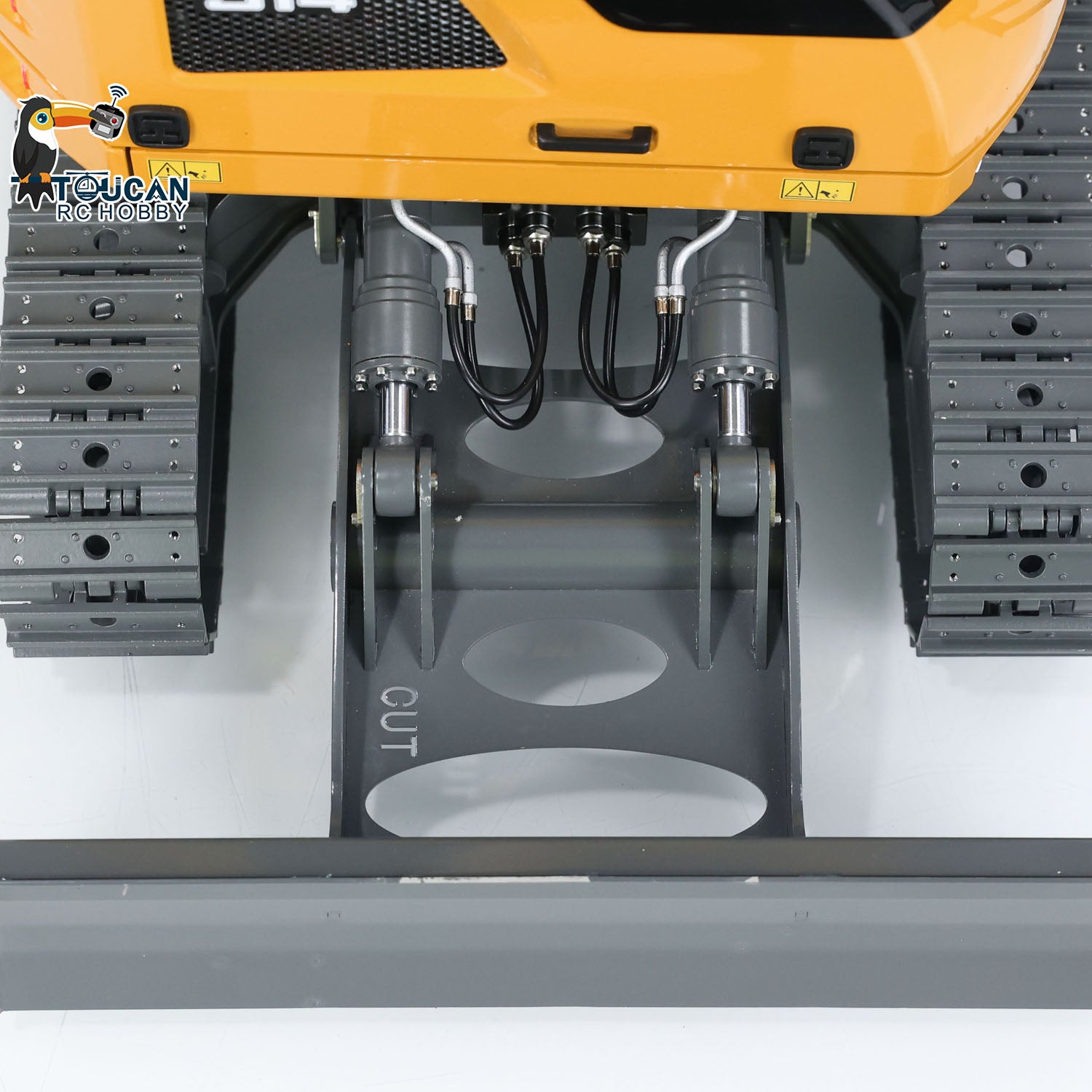

- Width of the bulldozer blade (mm): 198
- Maximum width of the chassis (mm): 203.2
Dynamic Parameters
- Maximum ground clearance with the bulldozer blade down (mm): 15.2
- Maximum ground clearance with the bulldozer blade up (mm): 52.6
- Rotation angle (??): 360 (infinite rotation)
- Torque of worktable rotation motor (kg): 25
- Rotation speed of the worktable (r/min): 9.5
- Single cylinder thrust (kg): 15
- Maximum speed of drive wheels (r/min): 30
- Drive wheel reduction ratio: 1/256
- Maximum pressure of hydraulic system (MPa): 4
- Rated pressure of hydraulic system (MPa): 2.5
Features
1. Main Body Construction: The main body predominantly uses CNC and stainless steel sheet metal processing, with certain few decoration parts using ABS molds.
2. Design Upgrades: This model offers various upgrade options and multiple attachments to enhance playability.
3. Innovative Hydraulic Valve: First to use newly developed mechanical proportional hydraulic directional valve, which makes the hydraulic functions of the excavator much more delicate and smooth

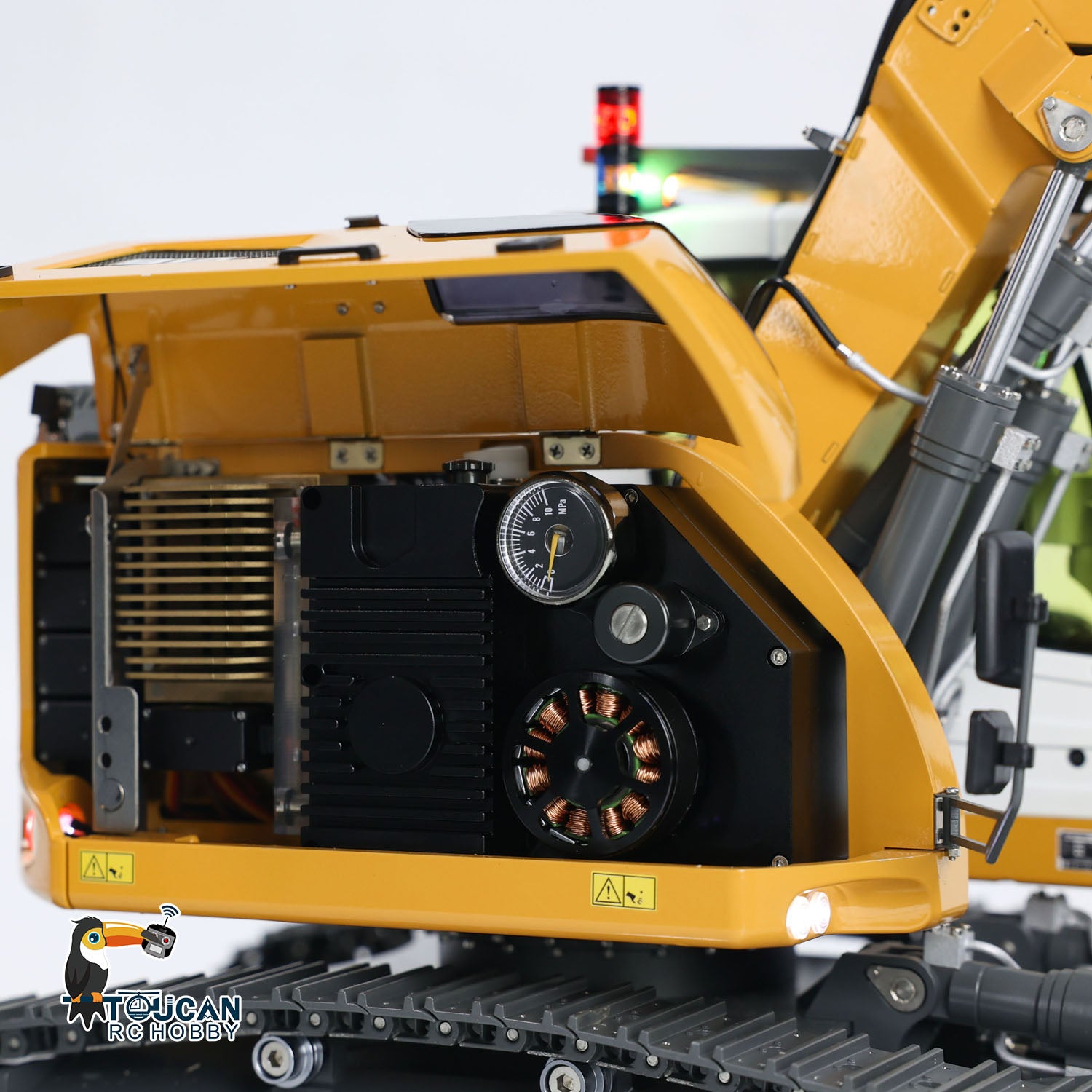

4. Integrated Hydraulic Pump Station: The hydraulic pump station integrates an oil tank, pressure regulator, pressure gauge, oil level indicator, and oil outlet into one block. ?With an external cooling fan that regulates the oil temperature of the entire hydraulic system during operation. The integrated hydraulic station block makes the appearance much neater and more convenient for subsequent maintenance.
5. Integrated Chassis: The one-piece CNC formed chassis increases body strength, provides stable torque output for drive, and reduces noise.
6. Rear Cover Design: Sliding design of the rear cover with 2 linear rods allows for smooth backward pull, facilitating quick battery placement.
7. Tracks Upgrade: There are four mounting holes pre-drilled on the tracks to facilitate the ?installation of the rubber pads onto the tracks, allowing you to operate the Excavator on smooth and delicate surfaces without leaving a scratch.
8. Swivel Hydraulic Slip Ring: Uses a X-shaped oil seal for smooth, stutter-free rotation and excellent sealing performance.
9. Cylinder Design: Adopts the sealing principle and structure of real vehicle cylinders, ensuring smooth operation with minimal resistance, good sealing, and easy maintenance.
10. High Integration 3-in-1 ESC Mainboard: Controls 2 drive motors and 1 hydraulic pump motor.
