Note: Smoking oil cannot be sent by international express. You need to buy smoke oil (ethylene glycol) locally.
Specification:
Manufacturer: Capo
Item Condition: New, Assembled and Painted.
Material: Metal, Plastic, Rubber

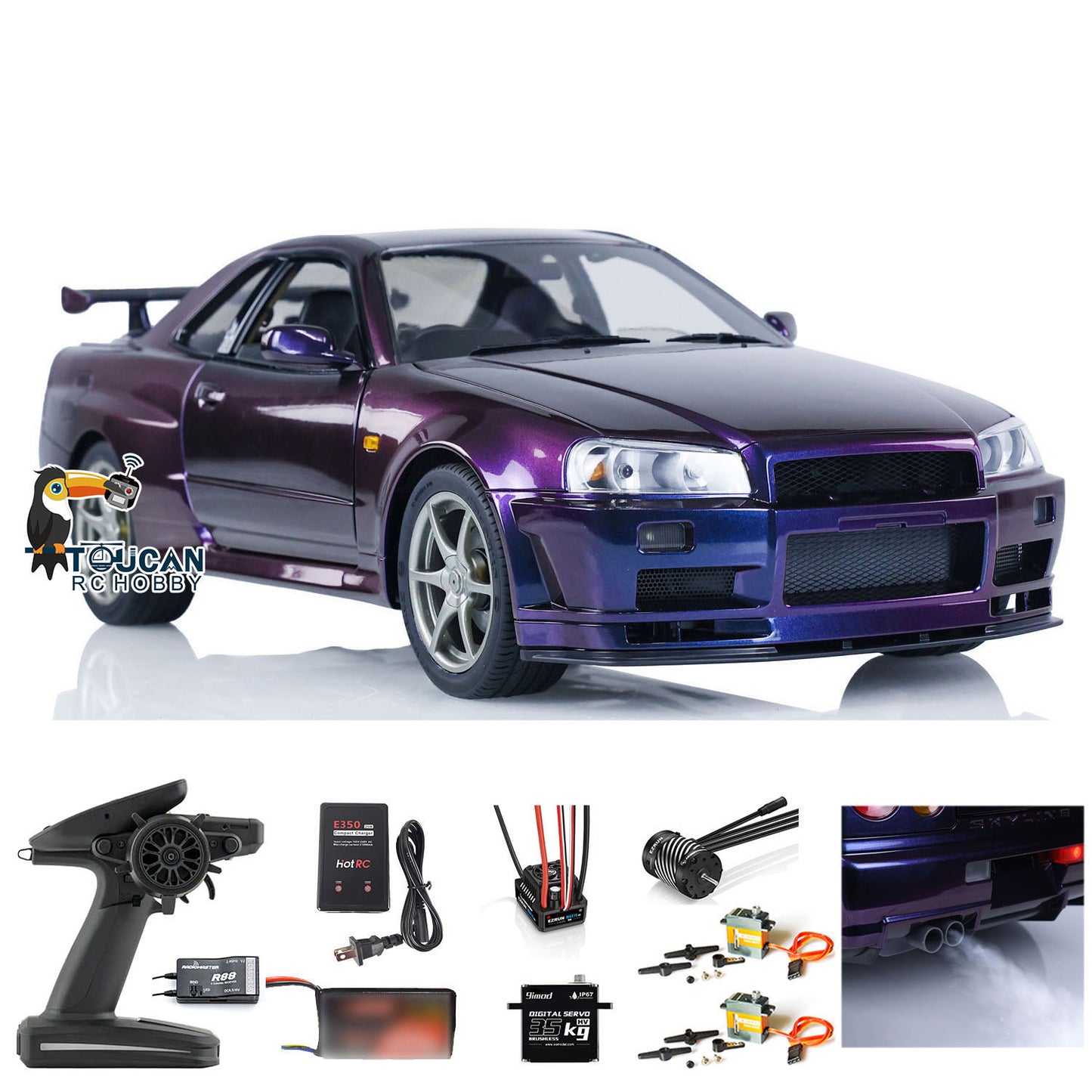

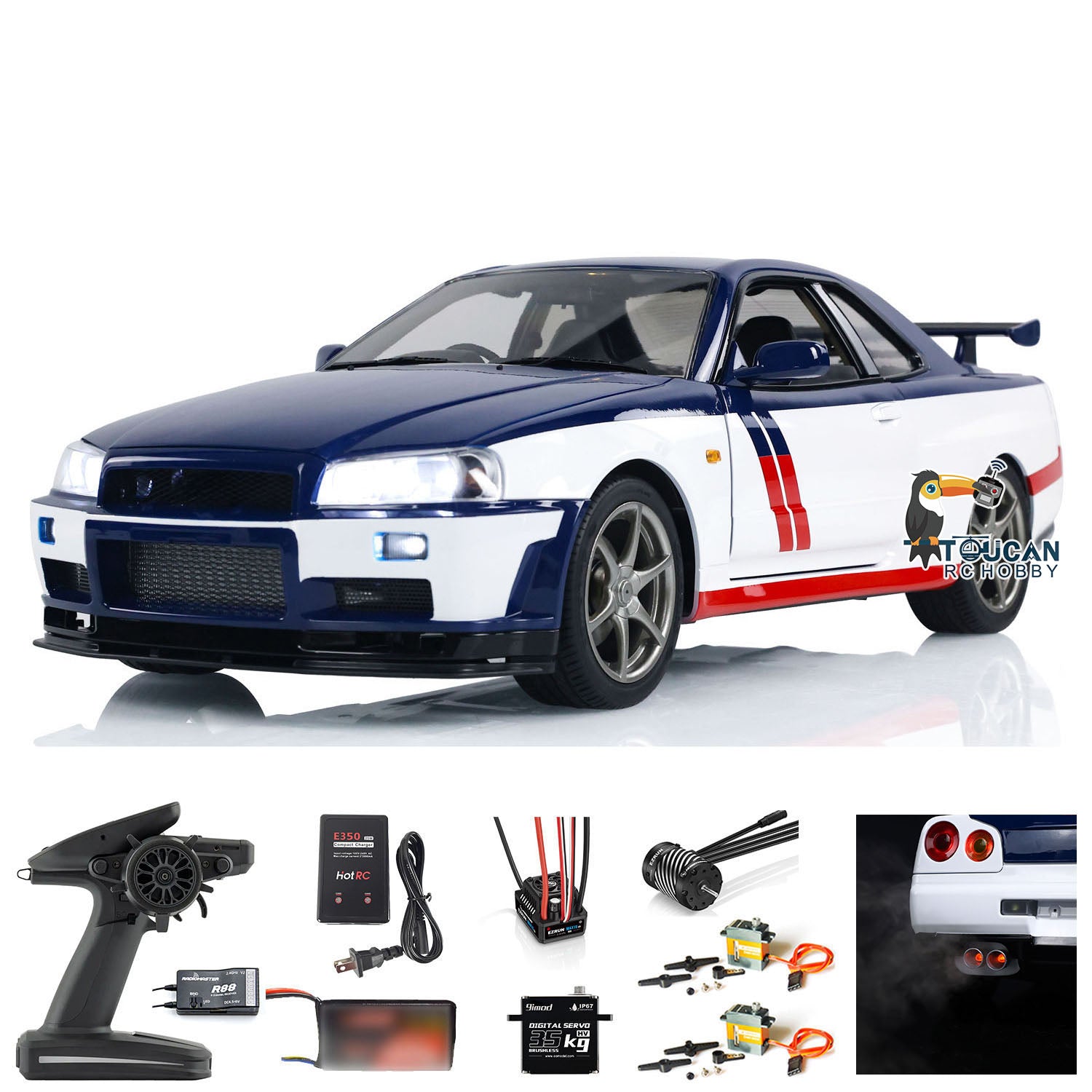

This package includes:

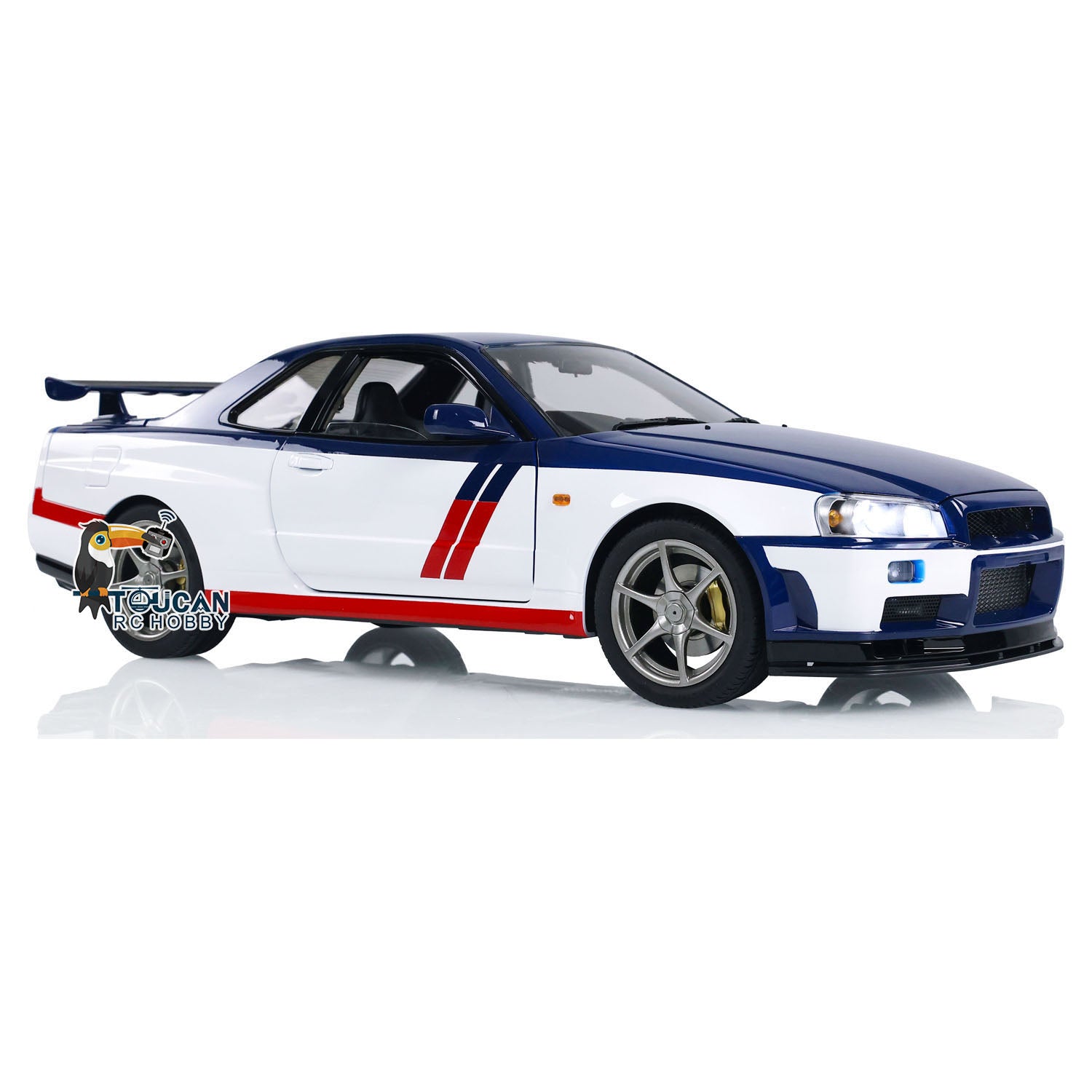

1/8 R34 RC Car Model
2-Speed Transmission
Motor: HOBBYWING EZRUN Brushless 3652SD G3 3300KV
ESC: HOBBYWING EZRUN Brushless MAX10 G2 80A
Servo:1x 35KG metal servo, 2 x 9g metal servos

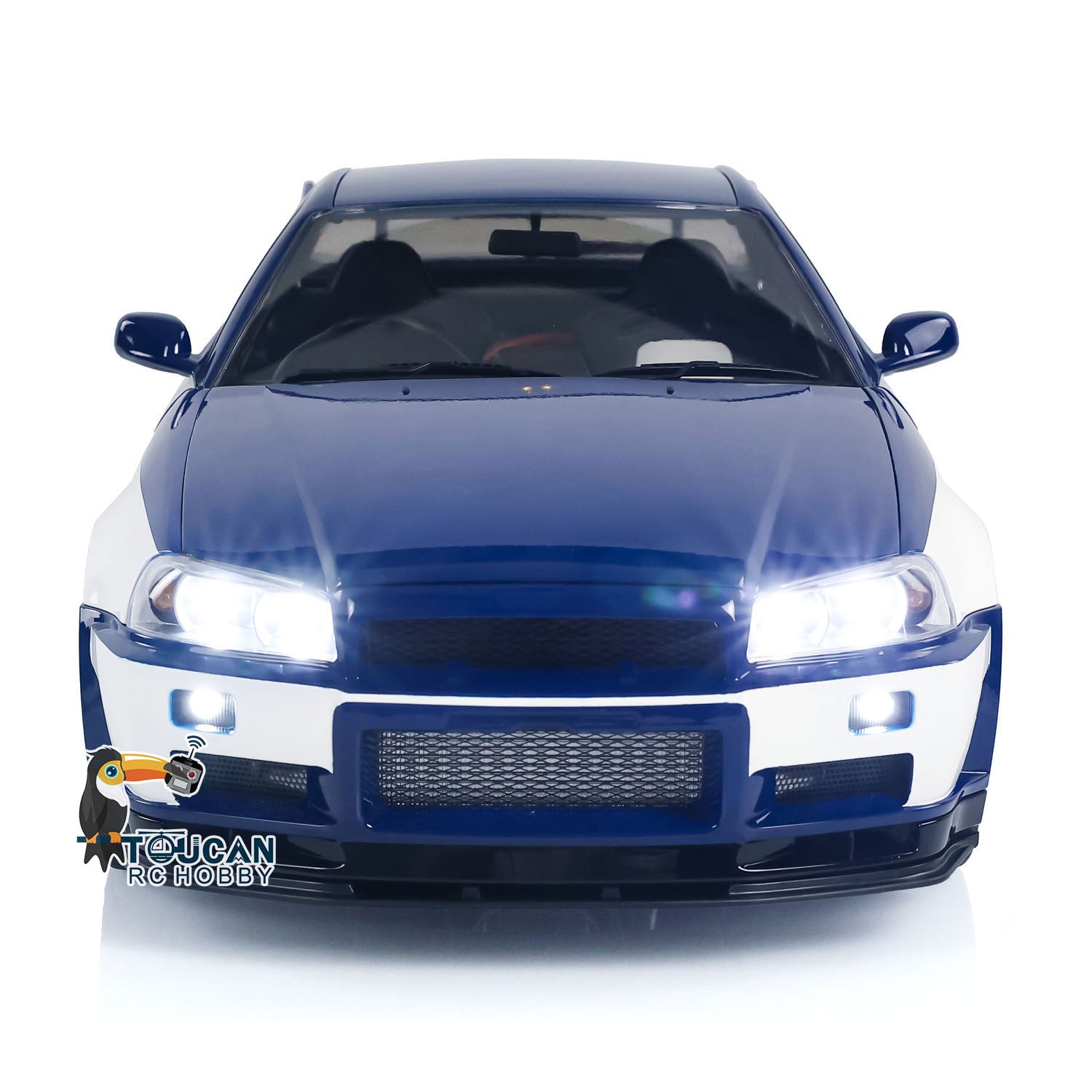

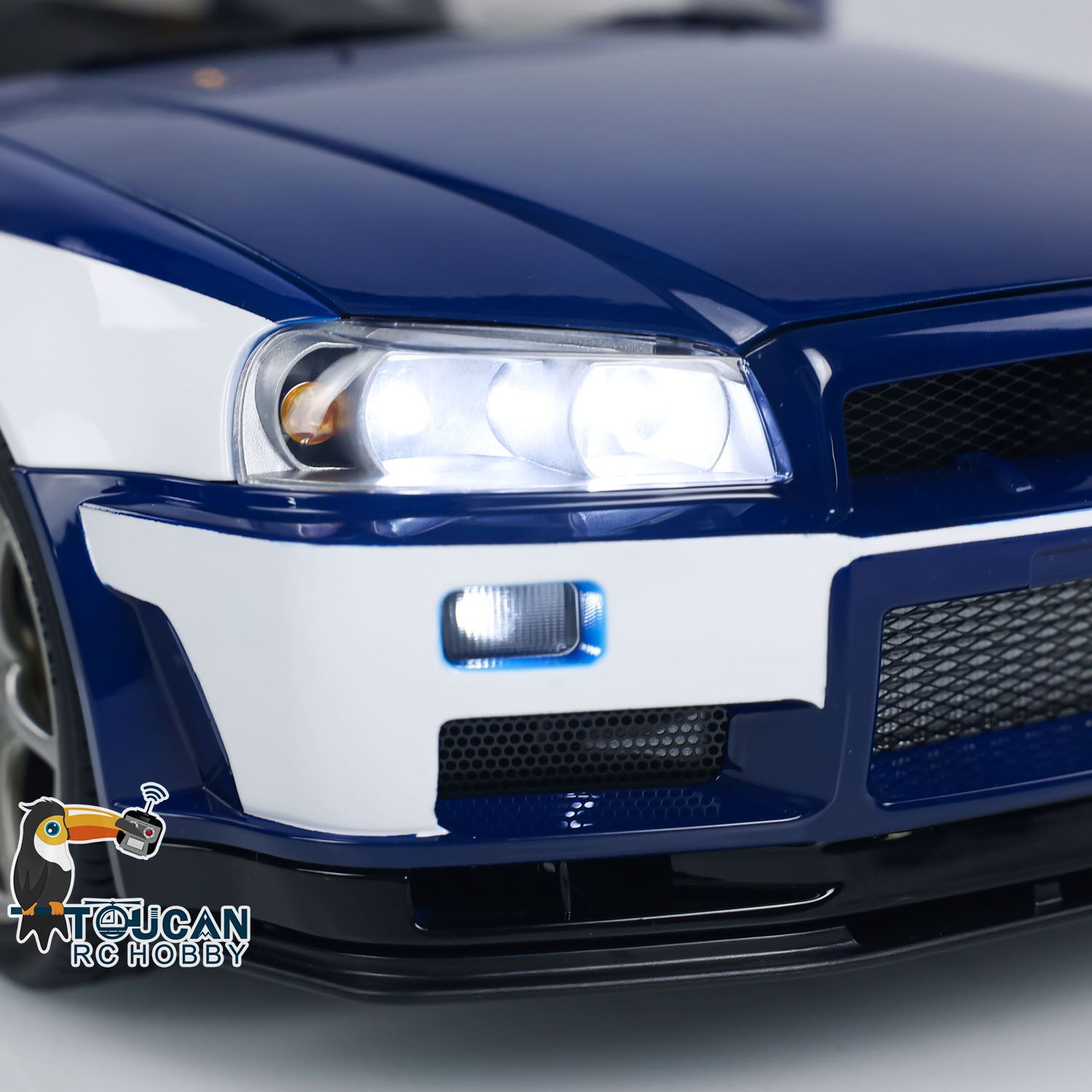

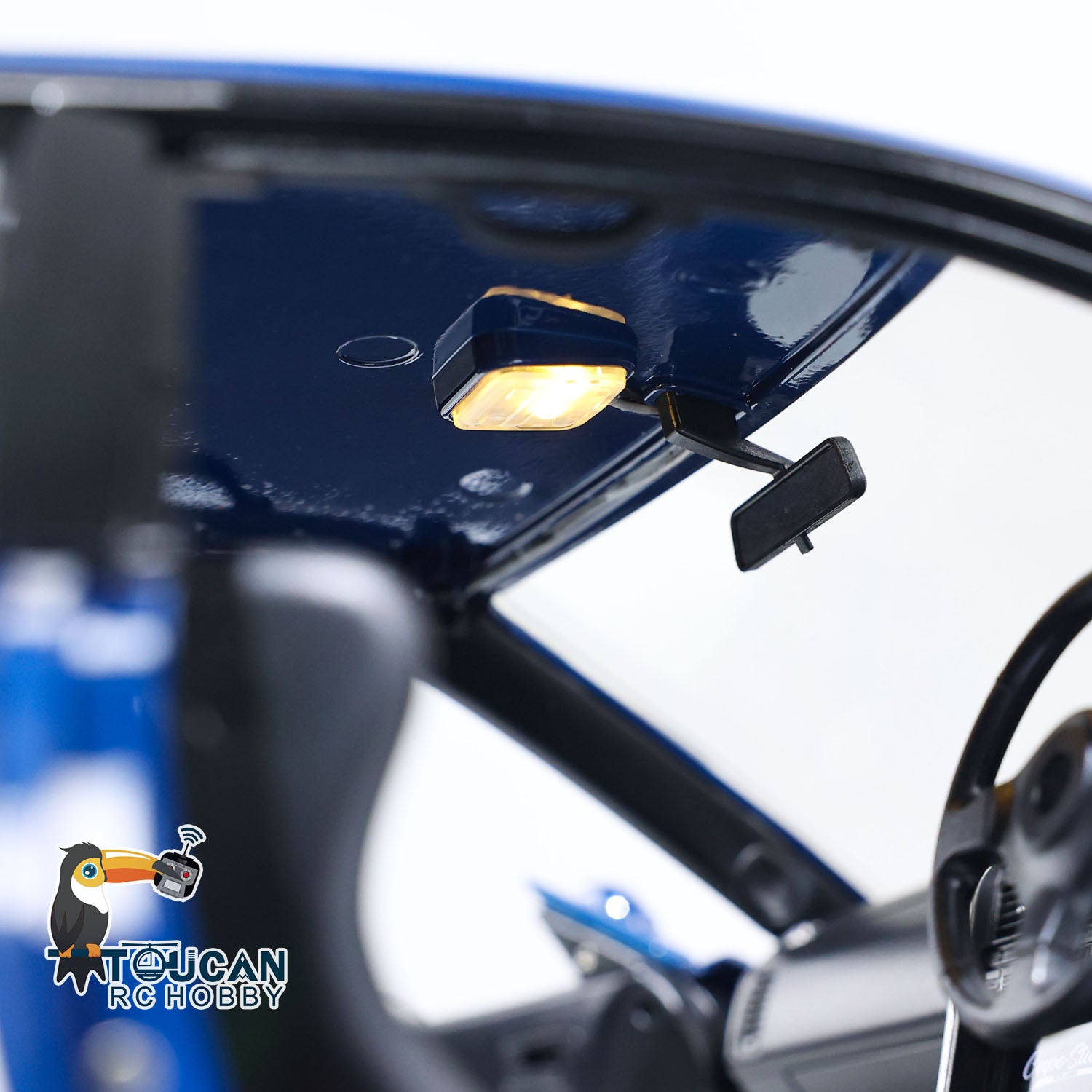

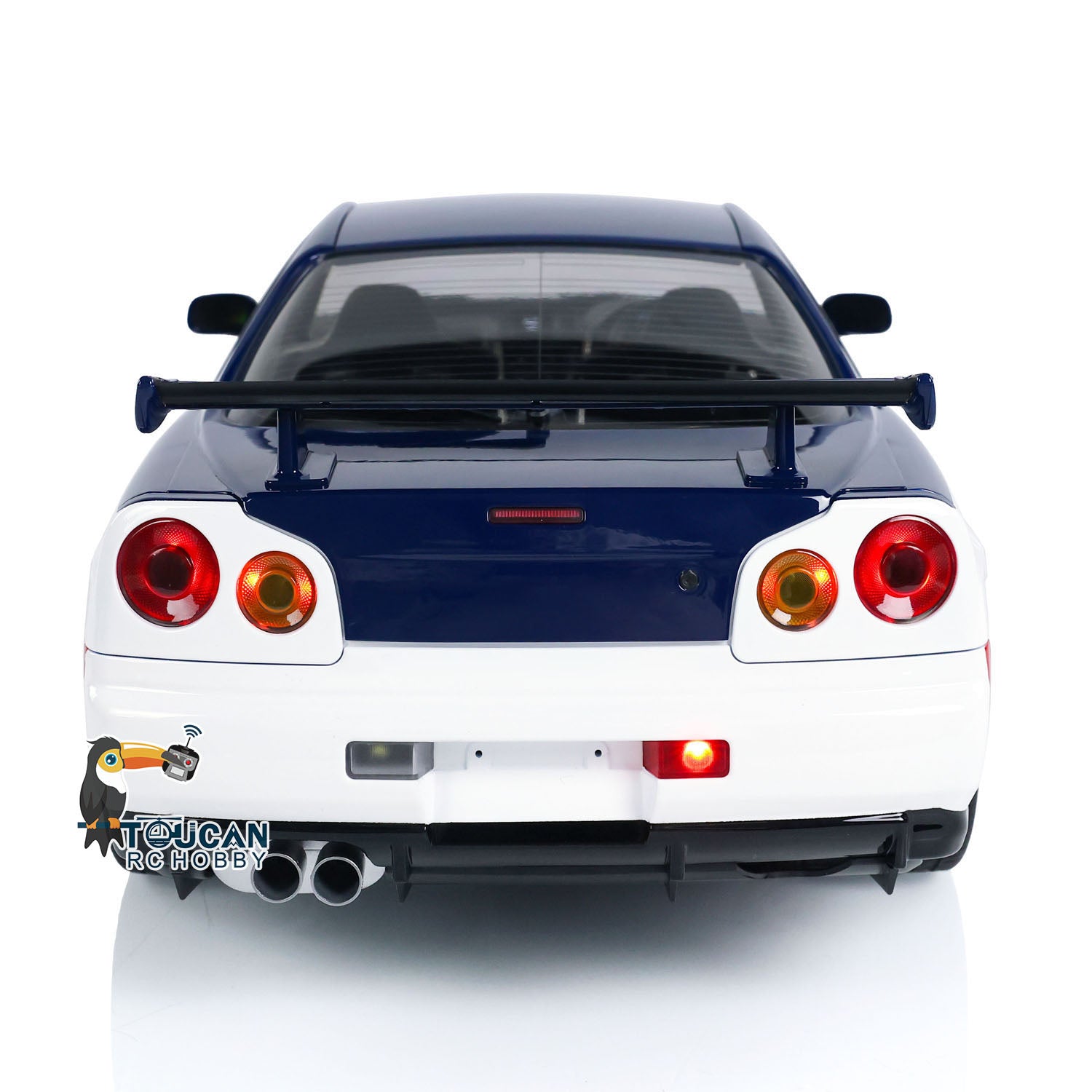

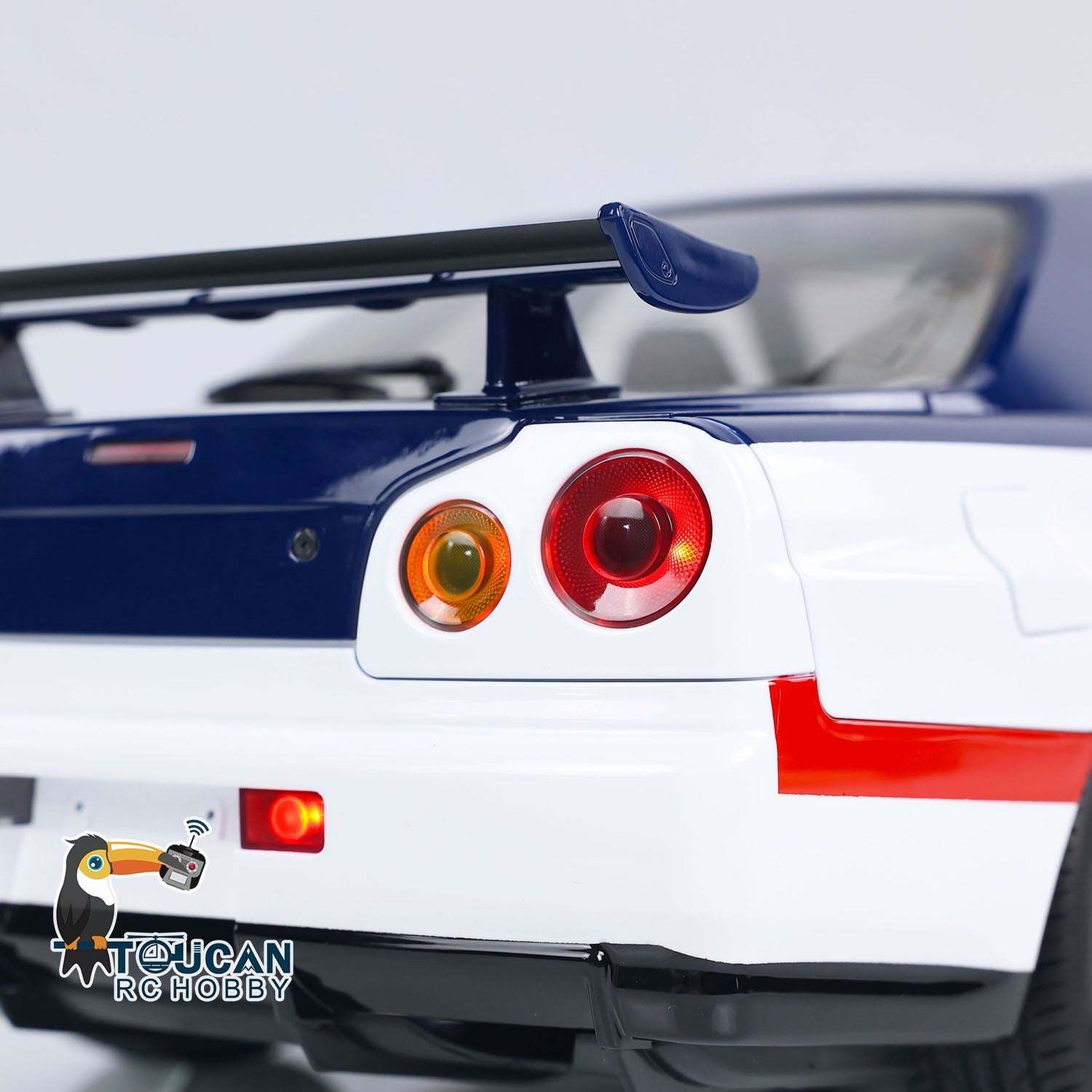

Light System
Sound System

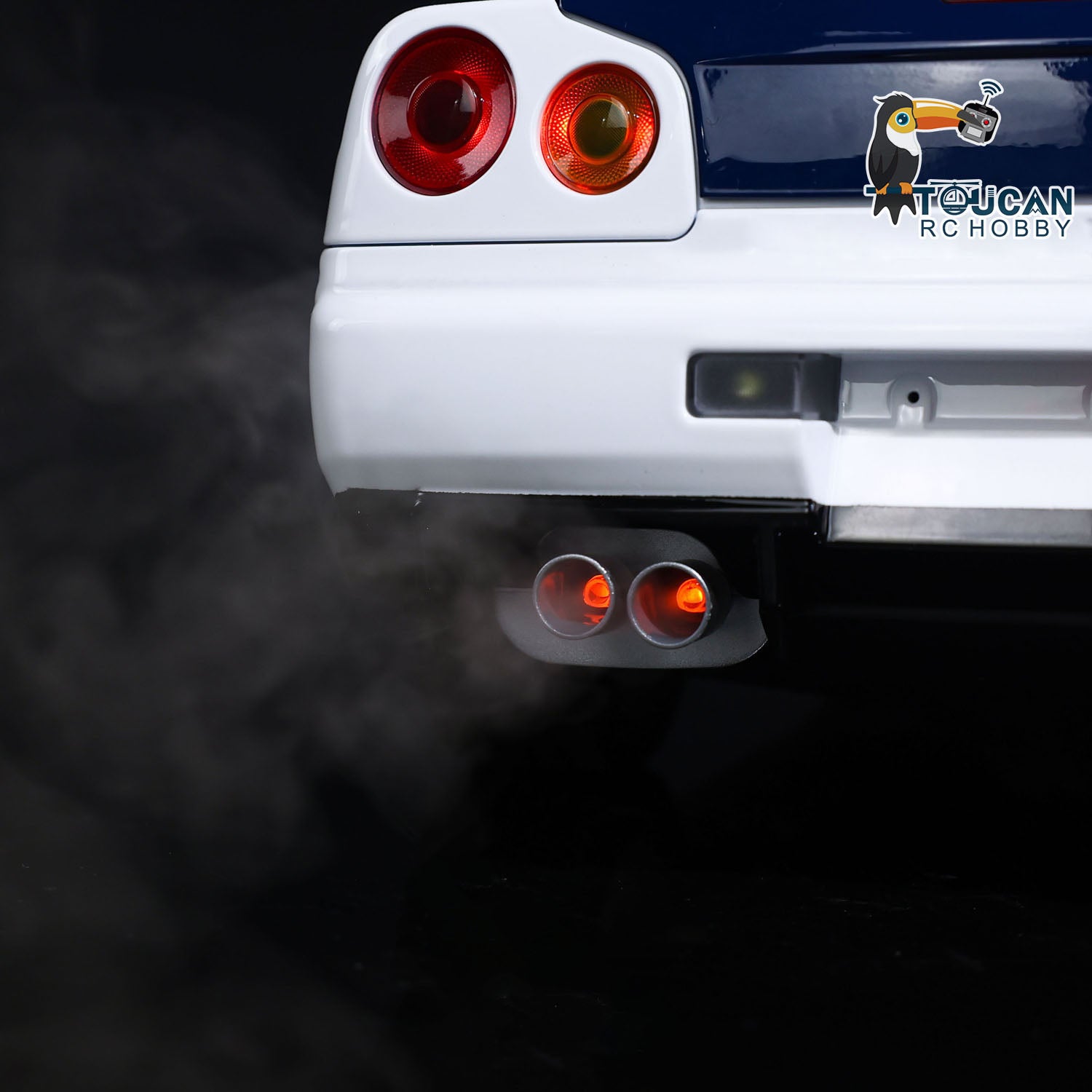

Smoke Unit
Radio Master MT12 Remote Controller and Receiver
Battery
Charger
Vehicle Features:
1. The car shell is made of magnesium alloy with ultra-lightweight (the material is the same as the UAV frame);
2. All CNC parts and die-casting appearance parts;
3. The independent front and rear bumpers are made of plastic, which same as the real car;
4. The differential gear uses powder metallurgy MIM technology, with an accuracy of ???¨¬?¡§¡§0.02 and hardness of 47-52HRC;
5. The vehicle is equipped with rubber tires, and drift hard tires are optional;
6. Truly restore the function of the pin-type valve and the same stepless damping adjustment as the real vehicle;
7. All-metal gearbox. The gearbox gear is made of carbon steel and hardened by quenching;
8. The axle is equipped with a differential function. The differential gear is made of powder metallurgy material with heat treatment, and uses metal injection molding technology;
9. The steering component restores the design of the real car, using rack and gear;
10. The shock absorber is a needle valve shock absorber, and the damping rebound coefficient of the shock absorber can be manually adjusted through the valve on the tower top;

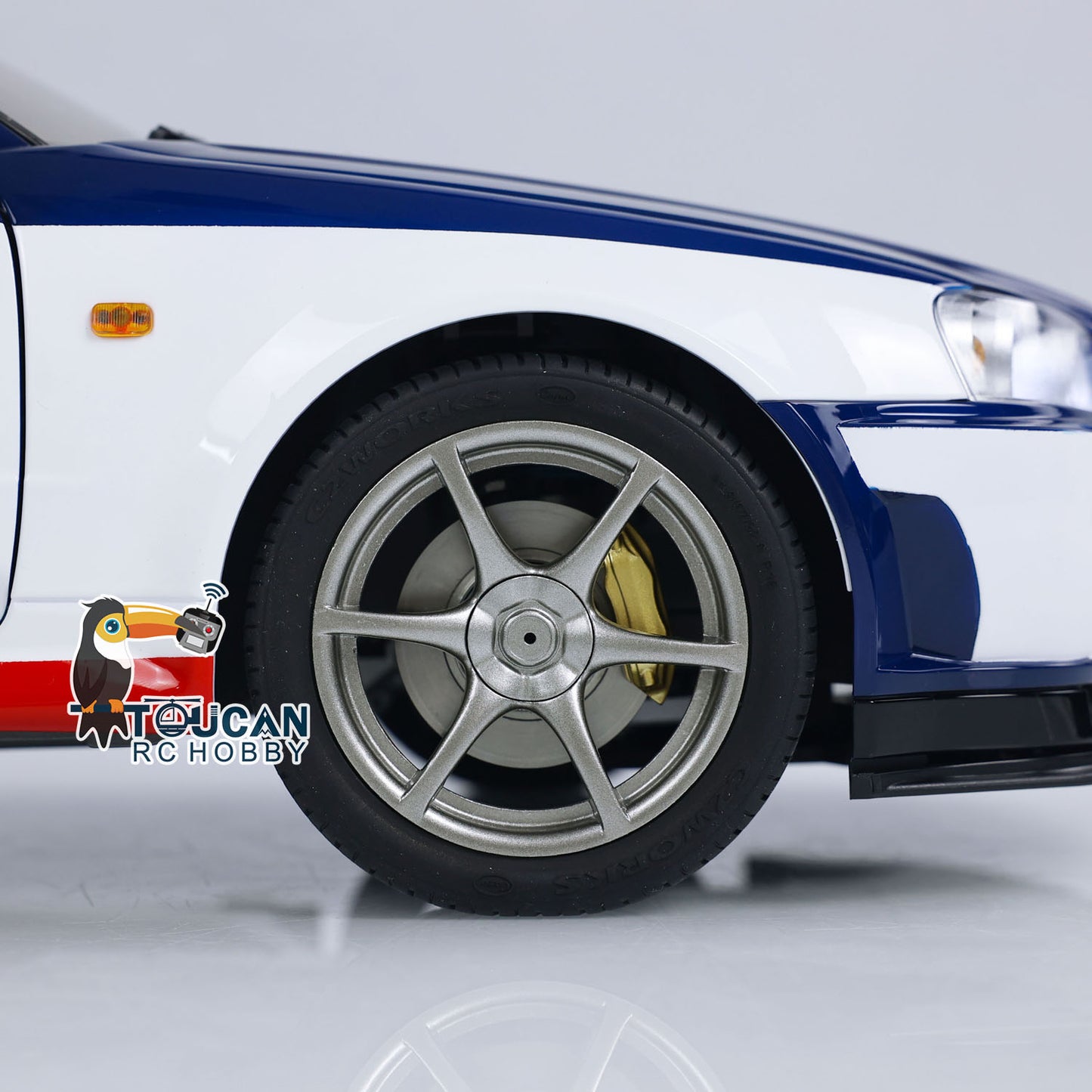

11. The vehicle is equipped with a brake disc, and the side of the brake disc is equipped with a vent;

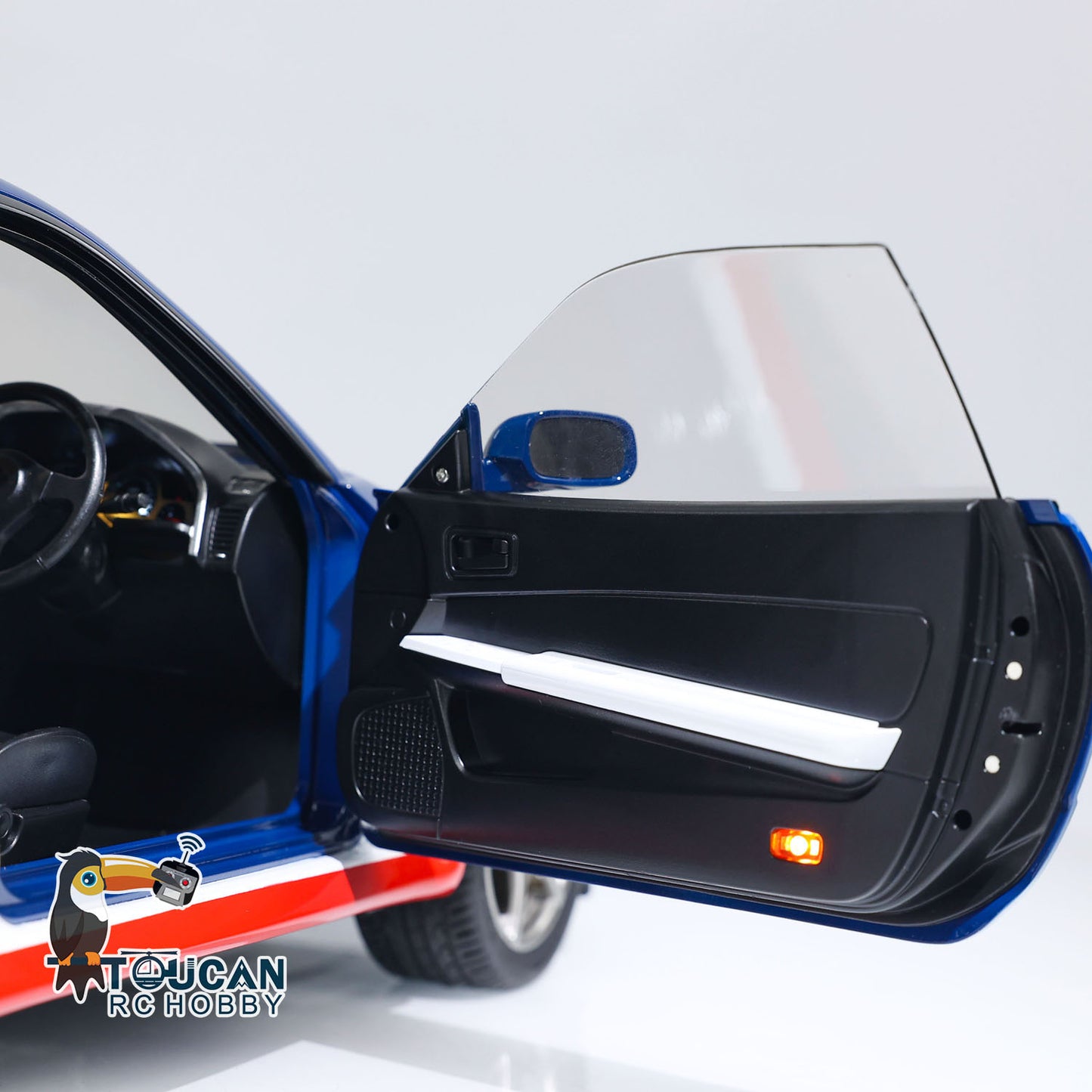

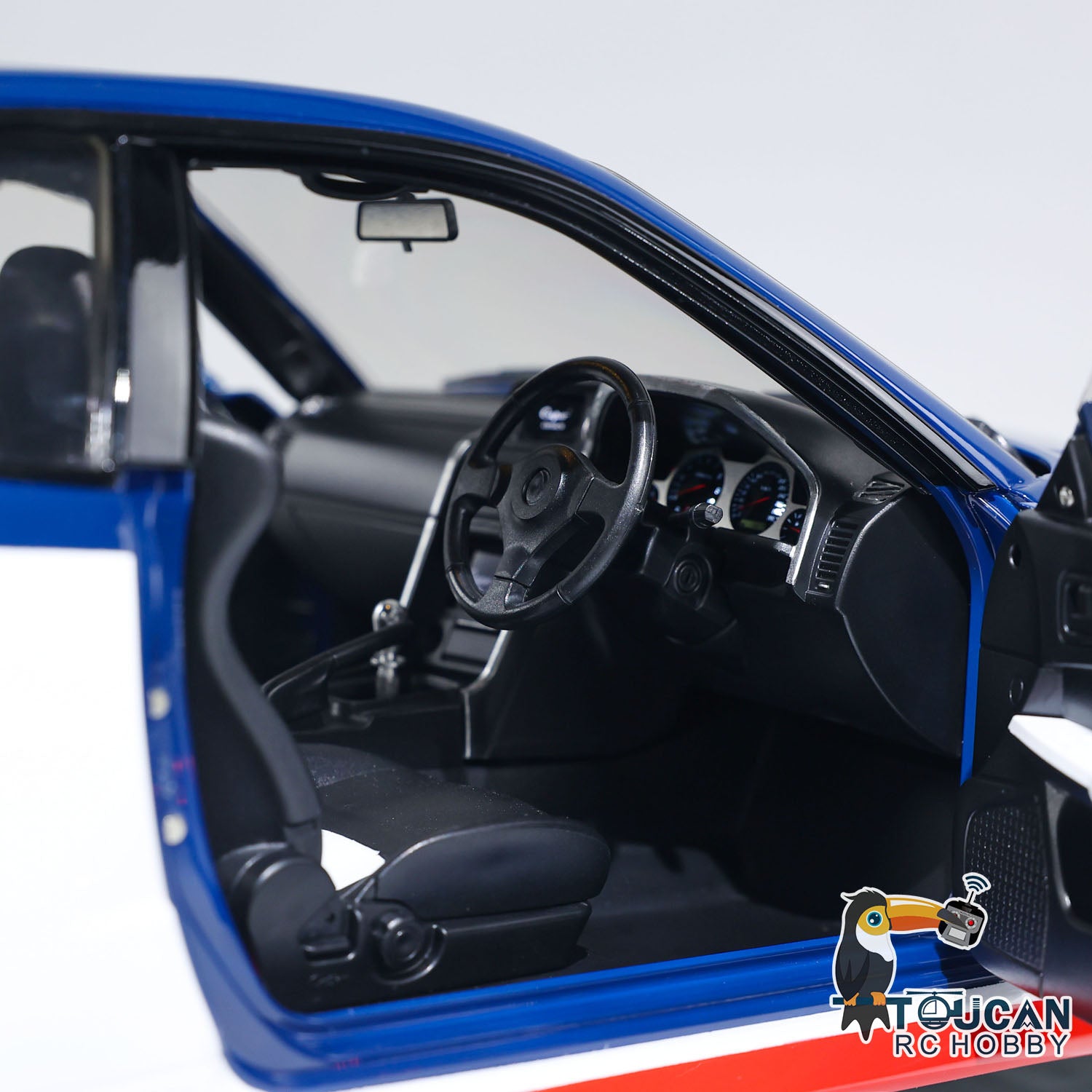

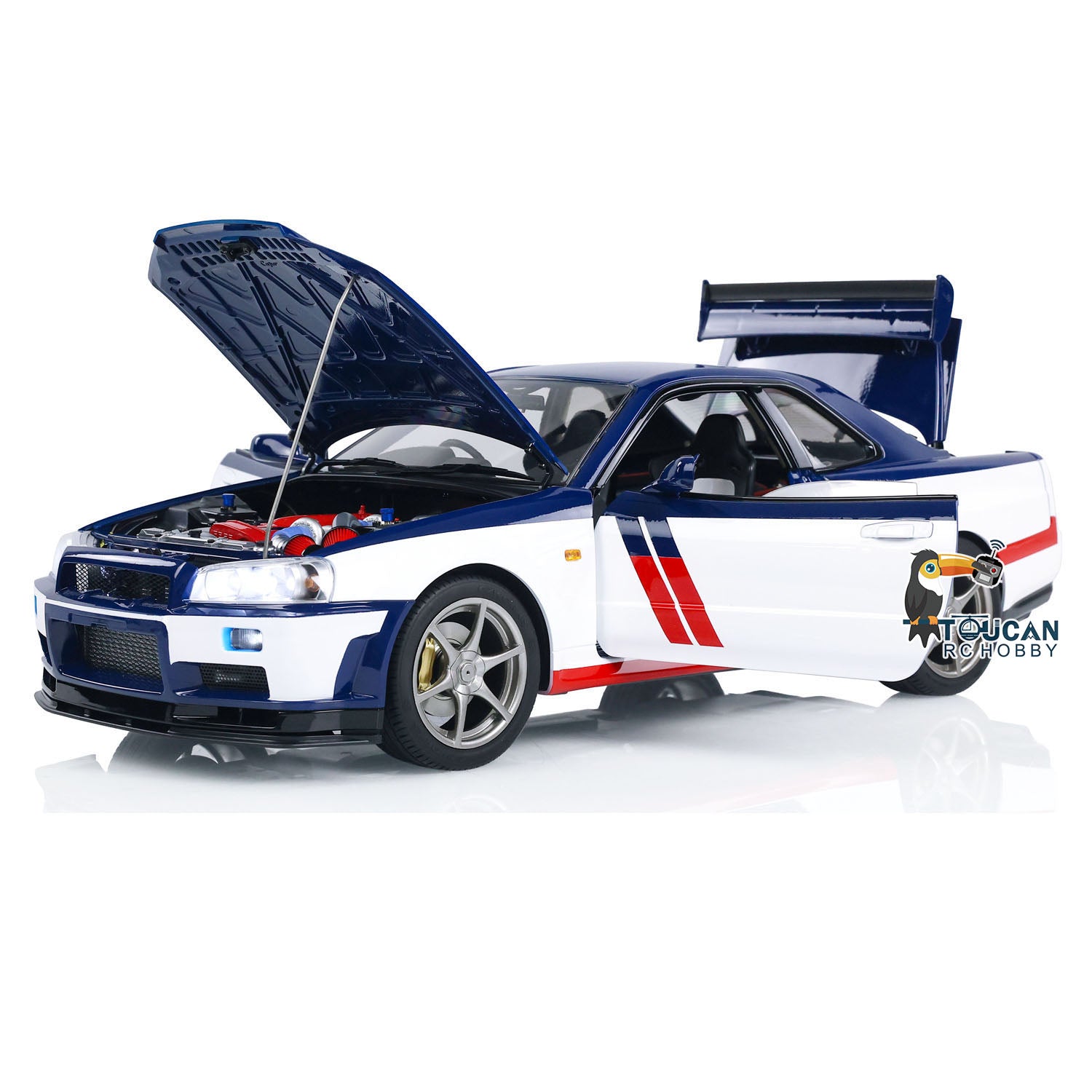

12. The door and hood can be opened.
About the Motor HOBBYWING EZRUN Brushless 3652SD G3 3300KV:
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensorless
Pole Count: 4
KV Rating: 3300KV
LiPo Cells: 2-3S
No-load Current(A): ≤3.9A
O.D.(mm): 37
Length (mm): 53
Shaft Diameter (mm): 3.175(0.125in)
Weight (g): 228g
Front Bearing: D13*D5*T4
Rear Bearing: D11*D5*T5
About the ESC HOBBYWING EZRUN Brushless MAX10 G2 80A:
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensorless
Waterproof: Waterproof
Cont./Peak Current: 80A/520A
Input Voltage: 2-3S Lipo
BEC Output: 6/7.4V,5A
Input Wires: Red-12AWG-150mm*1 Black-12AWG-150mm*1
Input Connectors: XT60
Output Connectors: 4.0mm Gold (female)
SET Button on ESC: No
LED Program Box: Supported
LCD Program Box: Supported(G2)
OTA Programmer: Supported
Program Port: Separate
Fan Size: 25x25x10mm
Fan Voltage Range: 5-7.4V
Fan Powered by: Powered by BEC
Firmware Upgrade: Supported
ESC Size: 53mm*39.5mm*37.2mm
ESC Weight: 120g(w/Wires)
If you have any questions or are not sure whether it is the correct item you want, pls feel free to contact me before purchasing.
