RadioMaster MT12 4in1 Trasmitter R85C Receiver for RC Truck Off-road Vehicles
RadioMaster MT12 4in1 Trasmitter R85C Receiver for RC Truck Off-road Vehicles
SKU:SuLe-RadioMaster-MT12-4in1-TX-R85C-RX-CX-SPF7
Specification:
Manufacturer: RadioMaster
Item Condition: New
Material: Plastic

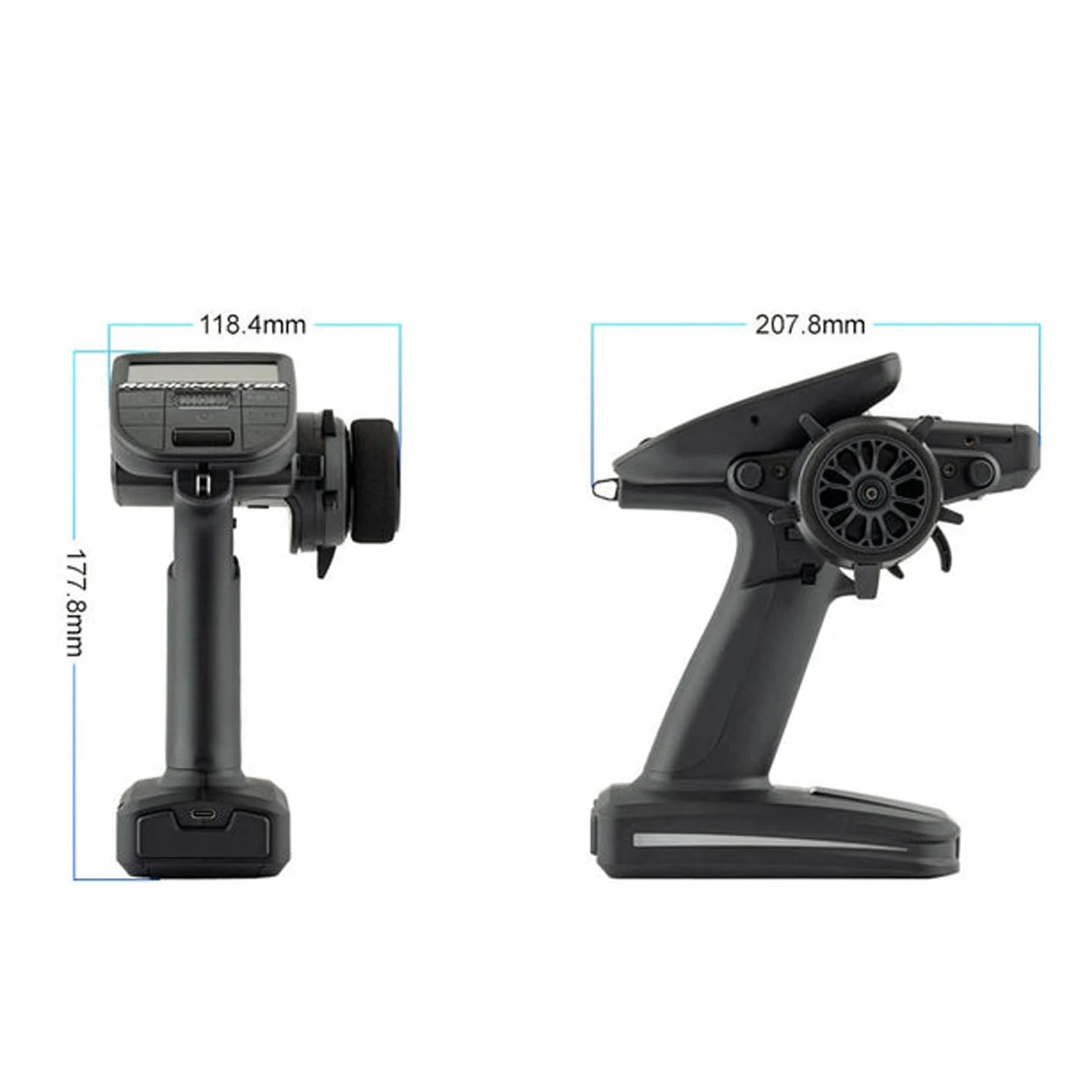

Size: 177.8*118.4*207.8mm
Weight: 480g
Operating Frequency: 2.400GHz-2.480GHz
Internal RF Options: 4-in-1 Multi-protocol
Supported Protocols: Depends on the internal RF module
RF Power: 4in1: Max 100mW (20dBm)
Operating Current: 4-in-1: 160mA/8V
Operating Voltage: 6.6-8.4V DC
Control Distance: > 1km @ 20dBm (Depends on the receiver model)
Operating System: EdgeTX
Control Channels: Supports up to 16 channels (Depends on the receiver)
Display Screen: 128*64 LCD
Battery: 2 x 18650 or 21700 5000mAh 7.4V battery pack (Batteries not included)
Charging: Supports USB-C direct charging
Firmware Upgrade Method: Via USB or SD card
Throttle and Direction: Hall sensors
Module: Nano size (compatible with RadioMaster Rangere Nano RF module/ RadioMaster RM 4in1 RF module/ TBS Crossfire Nano RF module)
ID: SuLe-RadioMaster-MT12-4in1-TX-R85C-RX

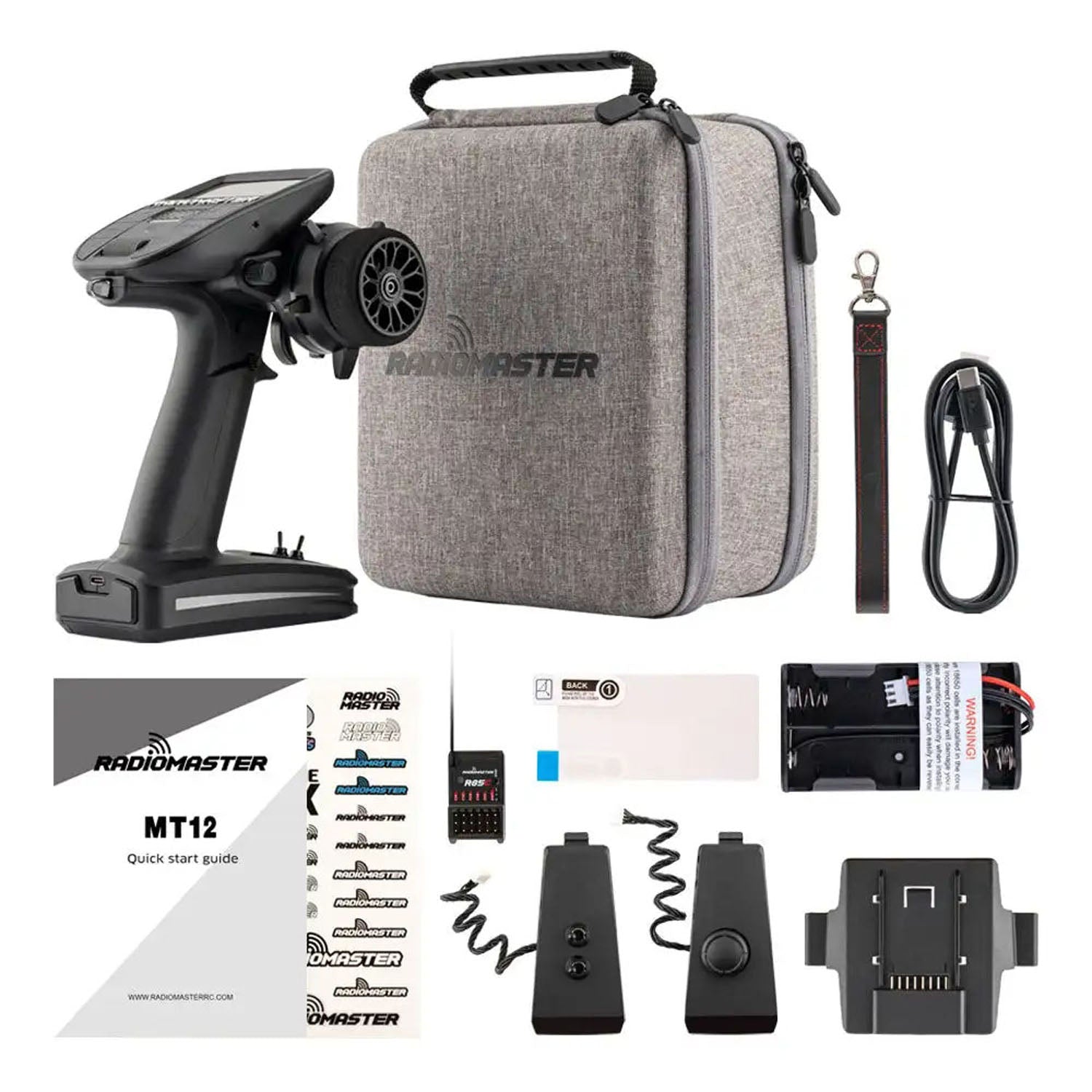

The Package Includes:
MT12 Remote Controller
R85C Receiver
The Package Does Not Include:
Battery
Specification of R85C
Item: R85C Receiver
Power supply: DC 4.5 - 8.4V
Frequency range: 2400-2483.5Mhz
Support protocol: D8/D16/SFHSS
Output channel: 5CH PWM
Antenna type: high-sensitivity 2.4G antenna
Telemetry power: 100mw / 20dbm
Weight: 5.7 grams
Dimensions: 31.0*18.5*13.0 mm
If you have any questions or are not sure whether it is the correct item you want, pls feel free to contact me before purchasing.
