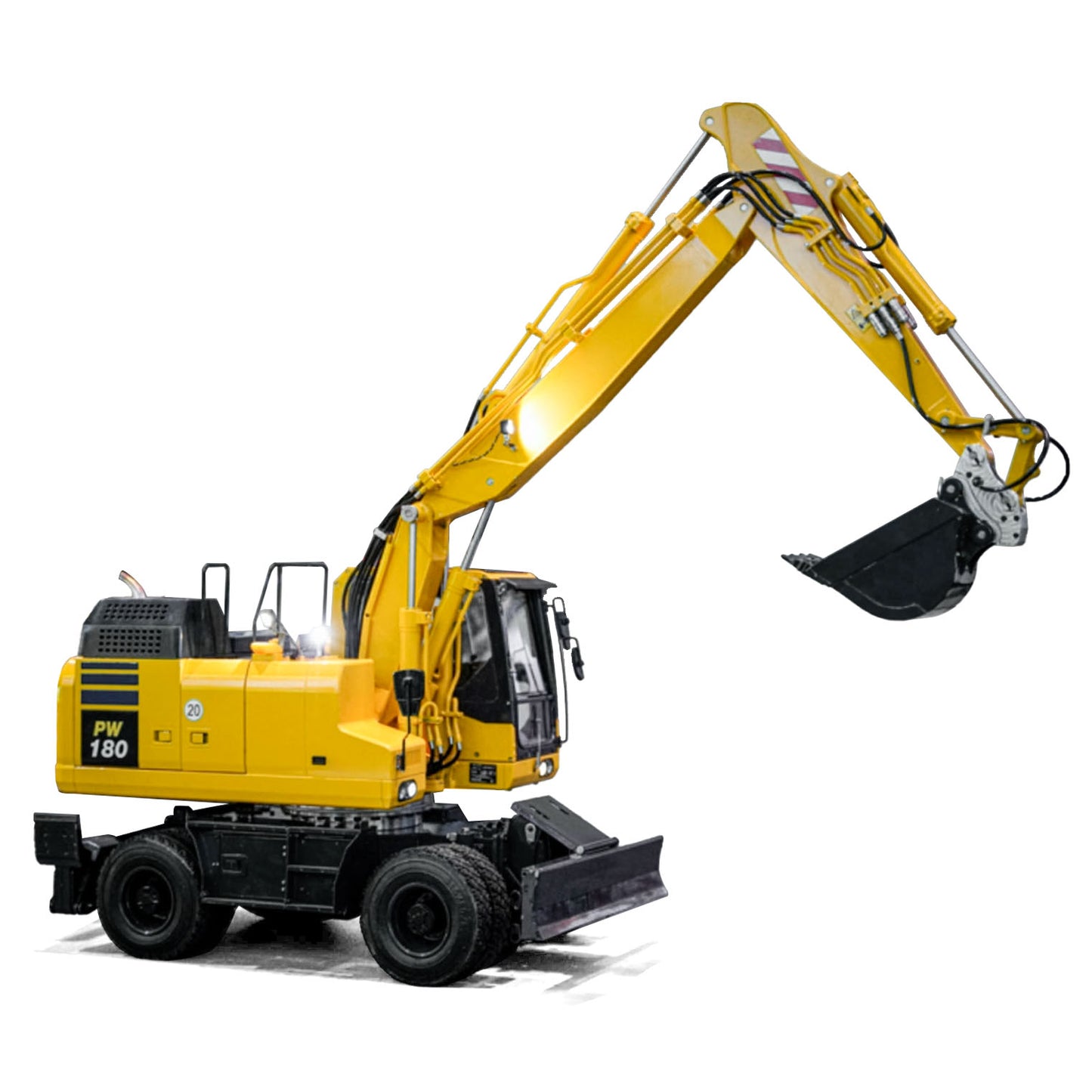

1/12 Remote Control Hydraulic Wheeled Excavator PW180 10CH Valve Metal Construction Vehicle Axle Lock Support Legs Front Shovel

#1/12 Remote Control Hydraulic Wheeled Excavator PW180 10CH Valve Metal Construction Vehicle Axle Lock Support Legs Front Shovel

#Specification:
Item Condition: New, Painted and Assembled.
Material: 98%Metal, 2%Plastic
Color: Yellow, Black
Scale: 1/12
Net Weight: About 16.5KG
Valve: 10CH
ESC: 3 in 1 80A Brushless ESC
Pump Motor: 4020 Brushless Motor
Driving Motor: 3542 Brushless Motor
Steering Servo: 28kg
Oil Pump Power: 1000W/2400 rpm
Rated Pressure: 4Mpa
Max. Pressure: 6Mpa (Adjustable Oil Pressure Output 2-6Mpa)
Rated Flow: 800mL/min (Adjustable Maximum Flow Rate Output 1000mL/min)
Hydraulic Fluid: 32#
Runtime: About 35min
Speed: 3KM/H
Minimum Steering Diameter: 60CM/23.6Inches
Max. Bucket Capacity: 94 mm?
Maximum Operating Weight: 10KG
Car Battery: 11.1V 3S Li-Po (Not Included)
Battery Compartment: 129*53*32mm/5.1*2.0*1.3Inches
Remote Control Distance: About 200m
Tire Diameter: 85mm/3.3Inches
Suitable For: 14 Years Old and Above
ID: DK-PW180-RTR-YBK

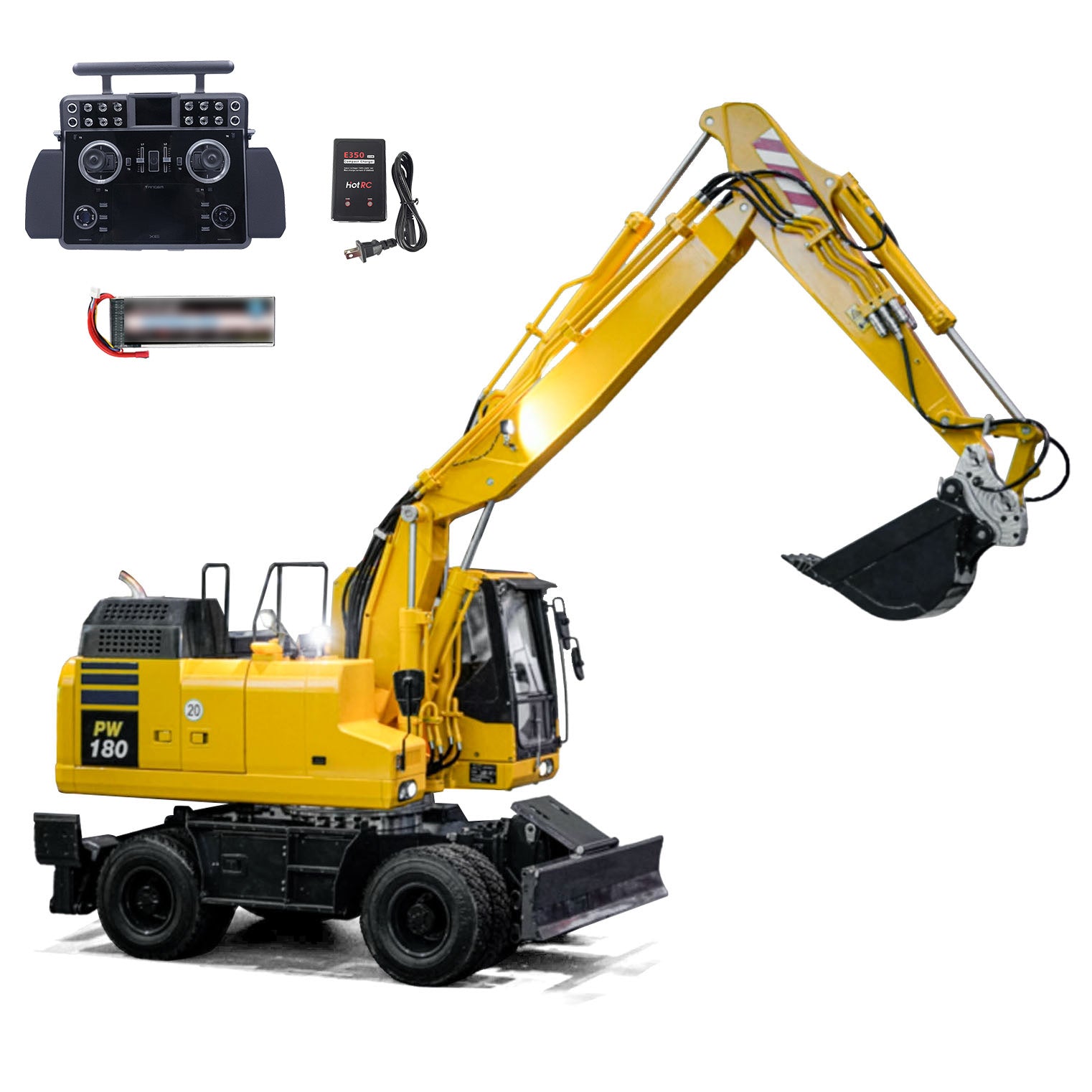

#The RTR Package Includes:
1/12 RC Hydraulic Excavator Model
Motor
Servo
ESC
Hydraulic System
Light System
Battery
Remote Controller and Receiver
Charger

#The RTR Package Does Not Include:
Hydraulic Oil
Sound System

#The PNP Package Includes:
1/12 RC Hydraulic Excavator Model
Motor
Servo
ESC
Hydraulic System
Light System

#The PNP Package Does Not Include:
Hydraulic Oil
Sound System
Battery
Remote Controller and Receiver
Charger

#Features:
1, Precision Hydraulic System: Our self-developed high-precision hydraulic system, equipped with a 4020 brushless oil pump, offers adjustable pressure from 2-6MPa and a rated flow of 800ml/min. The 9-channel directional valve paired with a hydraulic lock valve enables precise multi-action coordination, ensuring smooth, linear movements of the excavator arm.
2, Reliable Industrial Design: The industrial-grade hydraulic architecture features flange + seal structures in oil cylinders, significantly reducing leaks and hose damage during operation. It replicates the excavation motions of full-size machinery with exceptional precision.
3, Enhanced Stability: Standard rear hydraulic outriggers boost stability and functionality, allowing for a maximum lifting capacity of 10KG.
4, Modular & Durable Build: The modular construction simplifies assembly and disassembly. Comprising 80% CNC-machined aluminum components with a 98% metal composition, the machine provides an authentic mechanical feel while optimizing weight distribution and compactness for heavy lifting in tight spaces.
5, Expandable Hydraulic Configuration: Comes with a 9-channel directional valve, 1 hydraulic lock valve, and 3 standard auxiliary oil circuits for easy expansion. Upgraded cab circuits include 5V-3A and 12V-5A power ports for future modifications.
6, Powerful Lighting: The high-power lighting system ensures excellent visibility for nighttime operations.
7, Realistic Cabin: The cabin features realistic details, including an openable windshield, sunroof, and sliding side windows.
8, Comprehensive Protection: Our self-developed alarms for temperature control, high oil temperature, and low voltage, along with a special aluminum alloy radiator and wind-cooled electronic control system, extend the machine and battery lifespan.
